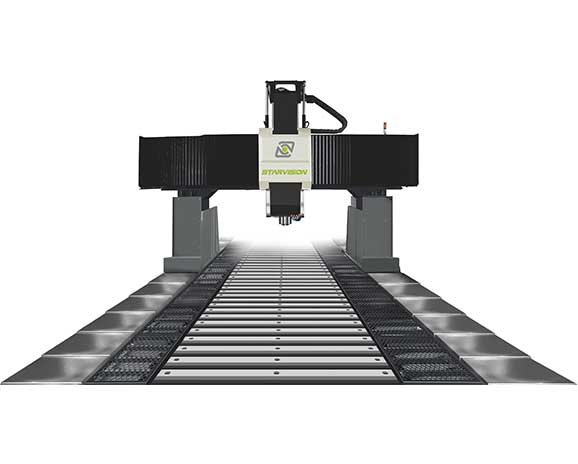

CM Series

X axis is driven by 2 sets of precision racks via CNC controller’s main second system synchronously,
the driving power is delivered via racks transmission gearbox, maximum stroke may reach 36 meters.

With 5 axis or 5 face milling function, the machine application range is even wider, the table load is unlimited.

Travels from 6m to 36m X-axis
3.7m to 5.7m Y-axis
distance between columns 3.1m to 5.1m

Model Unit CM-1637 CM-1647 CM-1657
Travel
X axis mm 6,200~36,200 6,200~36,200 6,200~36,200
Y axis mm 3,700 4,700 5,700
Z axis mm 1,000(1,200,1500 opt.) 1,000(1,200,1500 opt.) 1,000(1,200,1500 opt.)
Spindle nose to table mm 950~1,950 950~1,950 950~1,950
Distance between Column mm 3,100 4,100 5,100
Table mm
Table dimensions (L) mm 6,000~36,000 6,000~36,000 6,000~36,000
Table dimensions (W) 2,000 3,000 4,000
T-slot (width x number x pitch) 28×250 28×250 28×250
Max. table load kg/m2 5,000 5,000 5,000
Spindle
Spindle motor(cont./30 minute rated) kW/hp 22/26 22/26 22/26
Spindle motor(gear box / belt / direct) rpm 4,200 4,200 4,200
Spindle taper (BT-50) ISO 50 (BT-50) ISO 50 (BT-50) ISO 50
Feed
Rapid traverse mm/min X: 8 Y:10 Z:12 X: 8 Y:10 Z:12 X: 8 Y:10 Z:12
Cutting feed-rate mm/min 1 ~ 7,000 1 ~ 7,000 1 ~ 7,000
Accuracy (x, y, z)
Positioning accuracy mm P0.02/2.000 P0.02/2.000 P0.02/2.000
Repeatability mm PS 0.015 / 2.000 PS 0.015 / 2.000 PS 0.015 / 2.000
Other
Pneumatic input pressure kg/cm2 6.5 6.5 6.5
Machine floor space(L) mm 15,050 (In accordance with the length of the machine) (In accordance with the length of the machine)
Machine floor space(W) mm 10,500 11,500 12,500
Machine floor space(H) mm 6,400 6,400 6,400
Machine weight (approx.) Kg 105,000 115,000 125,000
11
Automatic clamping / automatic indexing head.
AC 5-face milling head
(Limited on PC/LG/LS Series)
SPINDLE SPEED RPM: 3000
AHC Unit includes:
(The unit is not included in PC Series)
Vertical / Horizontal 60 ATC unit.
22/26 KW Motor
Y Axis extension to 800 mm. (400 mm each side)
Higher Column 200 mm.
AC 5-face milling head
11
Manual clamping / automatic indexing head
(minimum index unit: 5°)
MC 5-face milling head
(Limited on FS/DX/PC/LG/LS series)
Vertical / Horizontal ATC unit is not included.
MHC unit includes:
1.Pendant arm (Swing arm head station )
2.MC 5-face milling head
3.Vertical tool change unit

FCS Table

Additional Accessories

Application

The Perfect Solution for Limited Working Space

  • CM Series is your reliable machining partner for overlength and overweight workpiece.
  • X axis is driven by 2 sets of precision racks via CNC controller’s main/second system synchronously, the driving power is delivered to the racks via transmission gearbox, maximum stroke may reach 36 meters.

Remark: With 5-axis or 5-face milling function, the application range of machine is even wider, the table load is unlimited.

Optional

pc

Category Description CM Series
Controller FANUC 0i-MF controller
FANUC 31i-MB controller
MITSUBISHI M70 controller
SIEMENS 840D controller
HEIDENHAIN iTNC530 controller
Spindle 18.5/22 kW spindle motor
22/26 kW spindle motor
4,200rpm 2-step gear drive spindle
4,500rpm 2-step gear drive spindle
6,000rpm 2-step gear drive spindle
8,000/10,000rpm direct drive spindle
Z travel extension / higher column Z travel 800mm
Z travel 1000mm
Z travel 1200mm
Z travel 1500mm
100mm heightened column (standard Z travel)
200mm heightened column (standard Z travel)
300mm heightened column (standard Z travel)
400mm heightened column (standard Z travel)
500mm heightened column (standard Z travel)
1000mm heightened column (standard Z travel)
ATC Automatic Tool Changer 32 tools
Automatic Tool Changer 24 tools
Automatic Tool Changer 40/60 tools
Automatic Tool Changer 90 tools
Splash guard Semi splash guard
Fully enclosed splash guard (roof excluded)
Fully enclosed splash guard (roof included)
Mechanical X/Y/Z axes absolute pulse coder
(X axes encluded)
Rigid tapping
Twin hydraulic cylinders
Nitrogen balancing system
Automatic lubrication system
Spindle oil cooler
Air blast through spindle
Manual Pulse Generator
Working lamp
3-color alarm lamp
RS-232 interface
Heat exchanger for electrical cabinet
Water gun and air gun interface
Cutting coolant system
Twin auger chip removal system
Belt type chip conveyor with cart
X axis Heidenhain Linear Scale
(Y /Z axis)
Sub-table
3 axes manual pulse generator for mold processing
Coolant through spindle at 20/40/70 bar
Coolant through tool holder interface
Air conditioner for electrical cabinet
Transformer
Oil skimmer
Oil mist collector
Others Leveling bolts & blocks
Tool box
CE norm
Measurement Heidenhain Linear Scale
Automatic tool measuring system
Automatic work piece measuring system
4th axis function CNC Rotary table
4th axis preparation
Milling head function Manual: 90° angular milling head/ high speed 2-axis milling head/
universal head/ extend head/ boring head

Semi-automatic: 90° angular milling head/ 2-axis head/
extend head/ boring head -V/H ATC and AHS inapplicable

Automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head
Vertical/Horizontal Automatic Tool Changer (40/60/90 tools)
Manual Head Station (Table type)
Manual Head Station (Arm type)
Automatic Head Station
