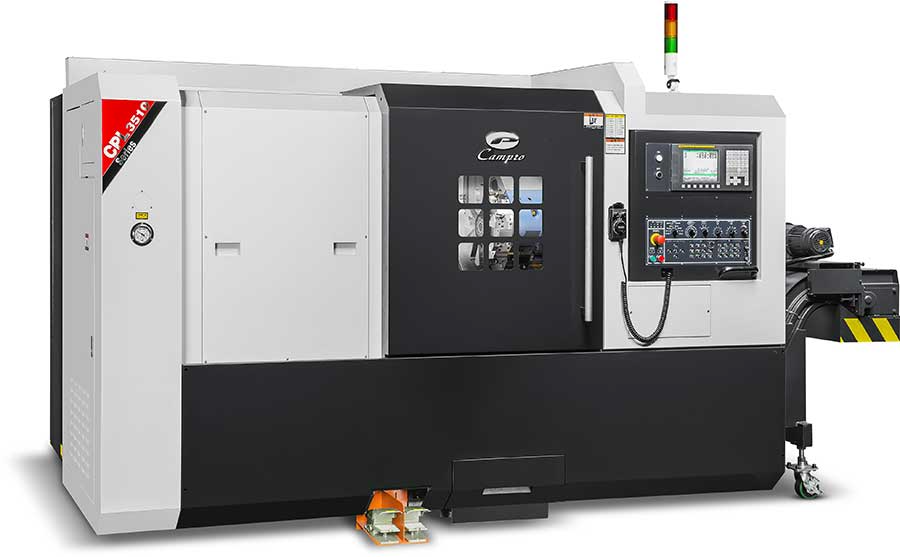

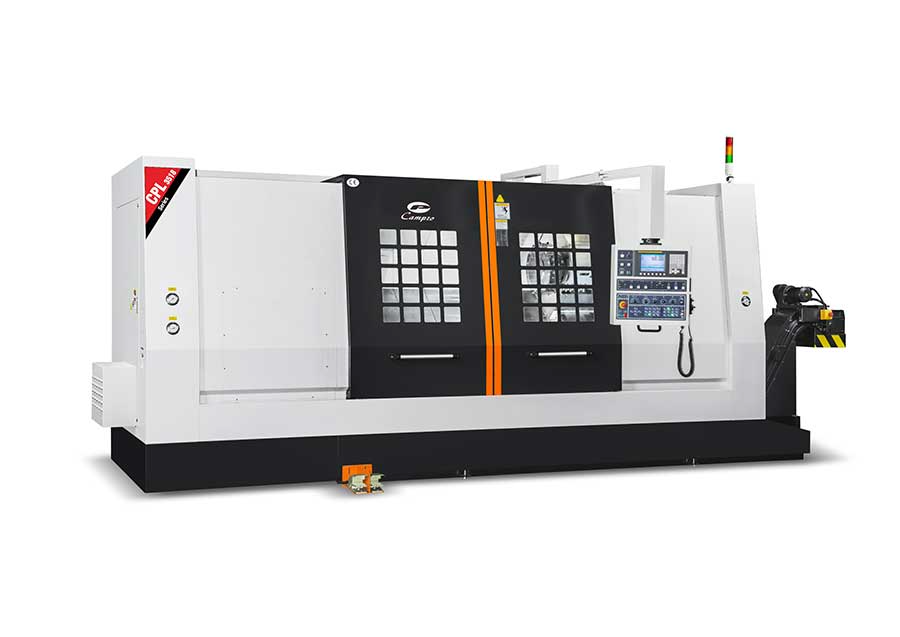

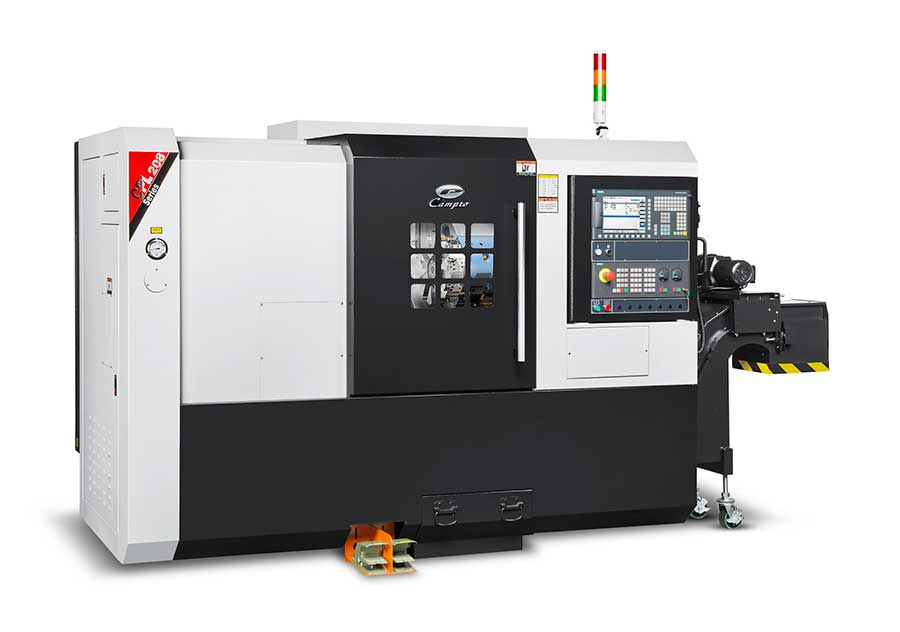

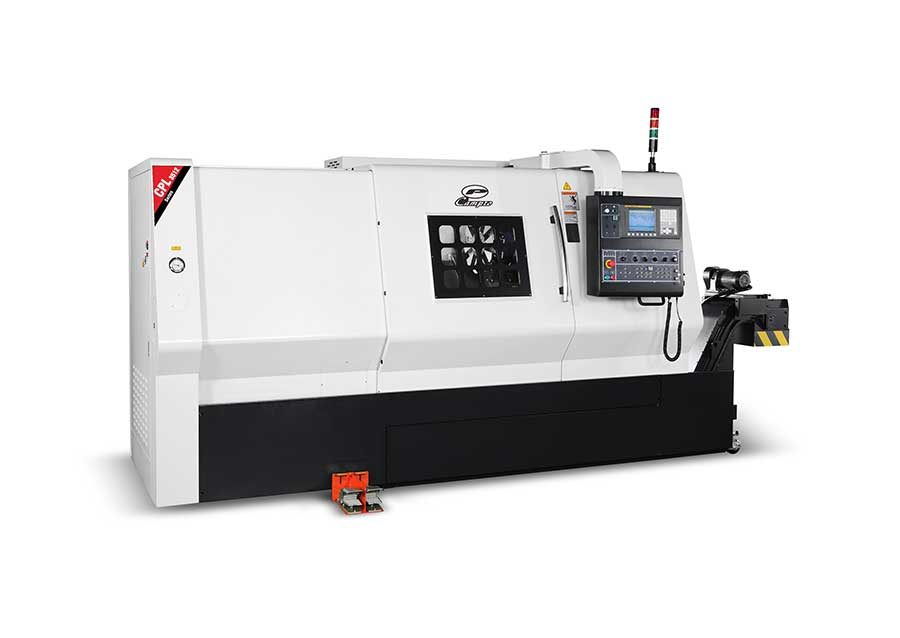

Campro

CPL

Multiple Models Available to Meet Any Size Job

Fully enclosed splash guard with aesthetic modular design.  To archive operational safety and environment protection, while upgrading working efficiency. All heat source positions are provided with ventilation and heat exhaust holes for efficient heat dissipation and ensure the machine accuracy.

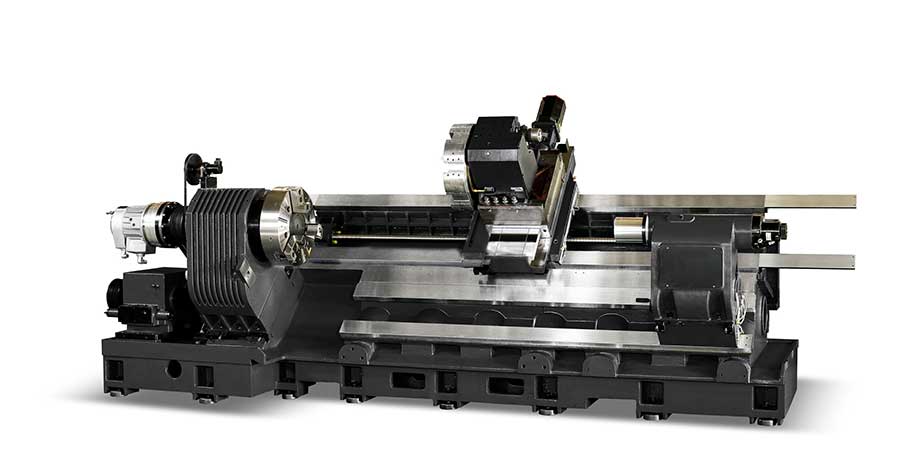

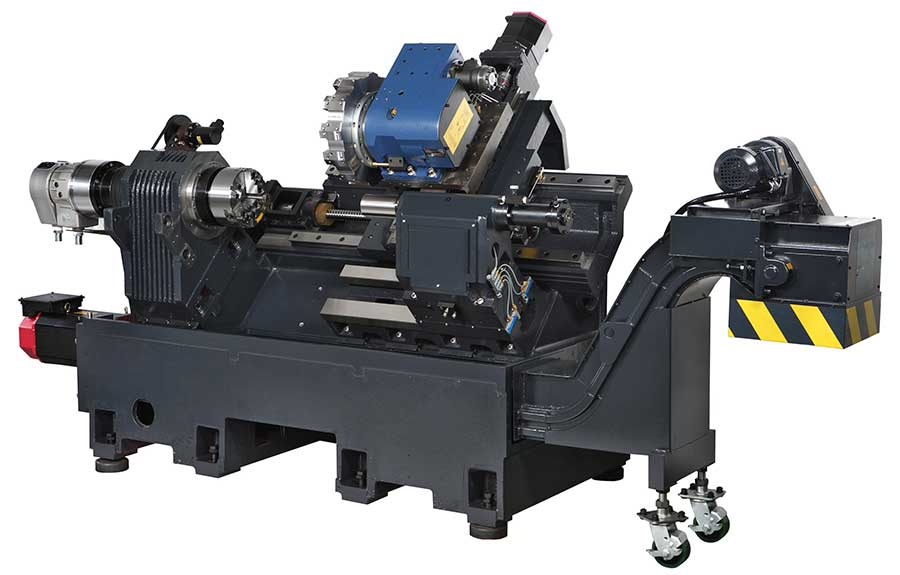

The one-piece constructed 45°box type structure is manufactured from high quality casting iron, assuring maximum rigidity and stability for long time machining.

The two axes employ high rigidity and high precision linear guideways which provide unmatched performance than that of competitors. The linear guideway features high loading capacity, low noise and long service life.

MODEL UNIT CPL-106 CPL-208 CPL-3510 CPL-3512 CPL-3518 CPL-3520
CAPCITY
Max. swing over bed mm 450 (17.7″) 540 (21.2″) 570 (22.4″) 700 (27.5″) 900 (35.4″) 900 (35.4″)
Max. swing over carriage mm 258 (10.1″) 370 (14.5″) 400 (15.7″) 500 (19.6″) 700 (27.5″) 700 (27.5″)
Distance between centers mm 350 (13.7″) 580 (22.8″) 810 (31.8″) 1,000 (1,500) 39.3″(59″) 2,100 (1,450) 82.6″(57″) 2,050 (1,400) 80.7″(55.1″)
Max. turning length mm 350 (13.7″) 500 (19.6″) 700 (27.5″) 1,000 (1,500) 39.3″(59″) 2,100 (1,450) 82.6″(57″) 2,050 (1,400) 80.7″(55.1″)
Standard turning diameter mm 240 (9.4″) 290 (11.4″) 320 (12.5″) 430 (16.9″) 620 (24.4″) 620 (24.4″)
Max. turning diameter mm 290 (11.4″) 400 (15.7″) 400 (15.7″) 500 (19.6″) 700 (27.5″) 700 (27.5″)
X-AXIS
Travel mm 150 + 20 (5.9 + 0.78″) 200 + 20 (7.87 + 0.78″) 200 + 20 (7.87 + 0.78″) 250 + 25 (9.84 + 0.98″) 355 + 30 (13.97 + 1.18″)
Rapid traverse m/min. 24 (944.88 ipm) 24 (944.88 ipm) 24 (944.88 ipm) 24 (944.88 ipm) 20 (787.4 ipm) 20 (787.4 ipm)
Z-AXIS
Travel (Option) mm 350 (13.77″) 500 (19.68″) 700 (27.55″) 1,000 (1,500) 39.3″(59″) 2,200 (1,550 / 3,200) 86 (61″ / 125.9″) 2,150 (1,500 / 3,200) 84.6 (59″ / 125.9″)
Rapid traverse m/min. 24 (944.88 ipm) 24 (944.88 ipm) 24 (944.88 ipm) 24 (944.88 ipm) 20 (787.4 ipm) 20 (787.4 ipm)
SPINDLE
Spindle nose type A2-5 A2-6 A2-8 A2-11 A2-11 A2-15
Hydraulic chuck (Option) inch 6″ (8″) 8″ (10″) 10″ (12″) 12″ (15″) 18″ (20″) 20″ (24″)
Hole through draw tube mm
  • 46 (1.8″)
  • 52 (2.04″)
  • 75 (2.95″)
  • 117.5 (4.62″)
  • 117.5 (4.62″)
  • 165 (6.49″)
Spindle bearing diameter mm 90 (3.54″) 100 (3.93″) 130 (5.11″) 170 (6.69″) 170 (6.69″) 240 (9.44″)
Spindle motor kW 7.5 / 11 11 / 15 22 / 26 22 / 26 22 / 26 (Gearbox) 22 / 26 (Gearbox)
Spindle speed rpm 6,000 4,200 3,000 2,000 2,000 1,000
TURRET
Turret type type 10-Station 10-Station 8-Station
O.D. / I.D. mm ?20 / Ø32 ?25 / Ø40 ?32 / Ø50 ?32 / Ø60
Tool change time sec. 0.3 0.3 0.3 0.3
TAILSTOCK
Quill diameter mm
  • 70 (2.75″)
  • 80 (3.14″)
  • 100 (3.93″)
  • 150 (5.9″)
Quill travel mm 80 (3.14″) 120 (4.72″) 120 (4.72″) 150 (5.9″)
Quill taper type MT-#4 MT-#4 MT-#5 MT-#6
OTHER
Floor plan (with chip conveyor) mm 2,962 x 1,625 (116.7 x 64″) 3,345 x 1,758 (131.7 x 70.3″) 3,765 x 1,758 (148.3 x 70.3″) 4,540 x 2,075 (178.8 x 81.7″) 6,313 x 2,250 (5,663 x 2,250)

248.6 x 88.6″ (223 x 88.6″)

6,433 x 2,250 (5,783 x 2,250)

253.3 x 88.6″ (227.7 x 88.6″)

Machine weight kg 3,000 (6,614 lbs) 4,500 (9,920 lbs) 5,500 (12,126 lbs) 6,500 (14,330 lbs) 13,000 (11,500)

28,660 (25.353 lbs)

13,100 (11,600)

28,880 (25.575 lbs)

Coolant tank capacity L 120 (31.2 gal.) 110 (28.6 gal.) 110 (28.6 gal.) 250 (65 gal.) 450 (117 gal.) 450 (117 gal.)
Power capacity KVA 15 20 30 30 40 40

FCS Table

Additional Accessories

Application

Optional

  • Collet chuck
  • Oil mist collector
  • Back side chip removing
  • Special purposed chip conveyor
  • Programmable tailstock
  • Tool setter
  • CE modification
  • Transformer
  • Parts catcher
  • Air condition
  • VDI turret
  • Servo turret
  • Auto. door<
  • Auto. power off

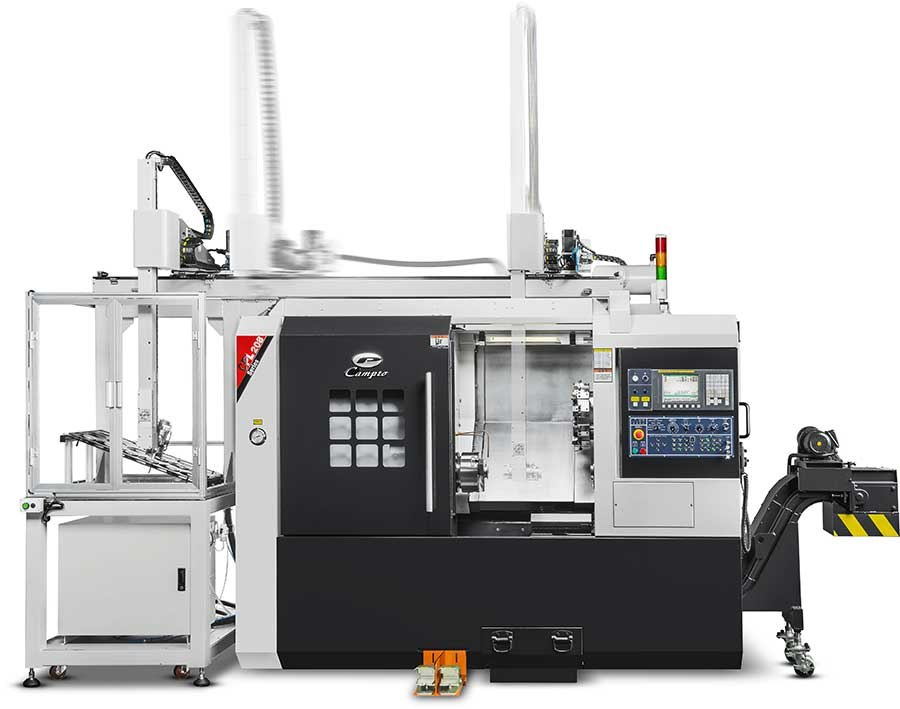

  • Automatic bar feeder
