Starvision

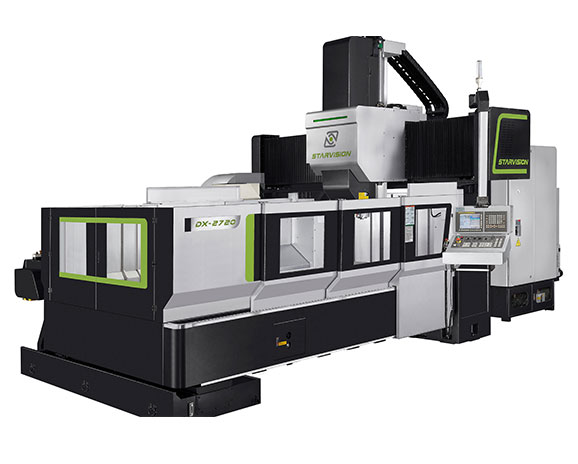

DX Schnell

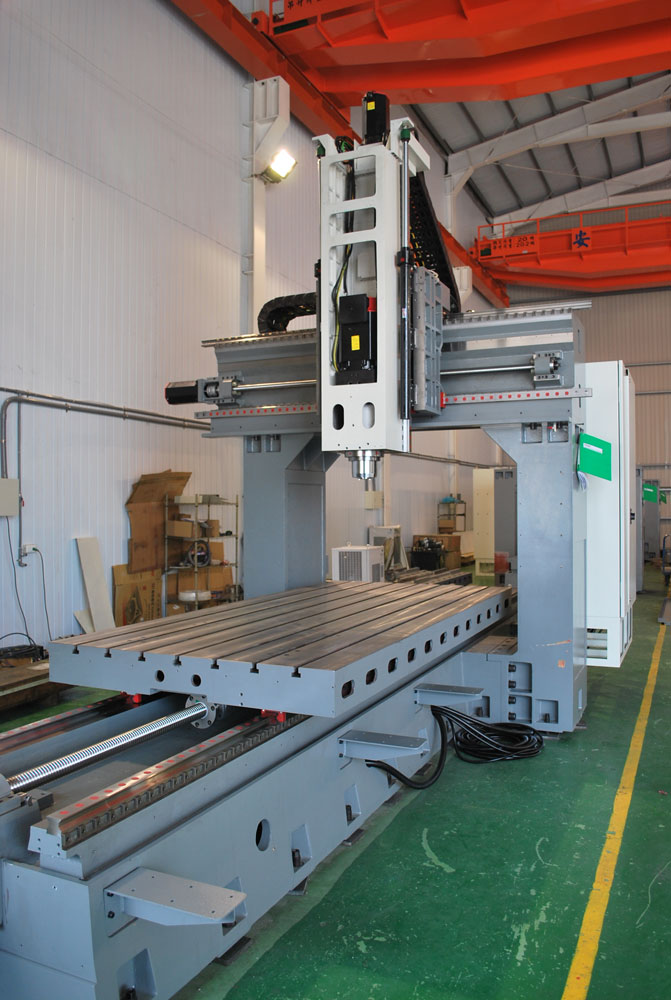

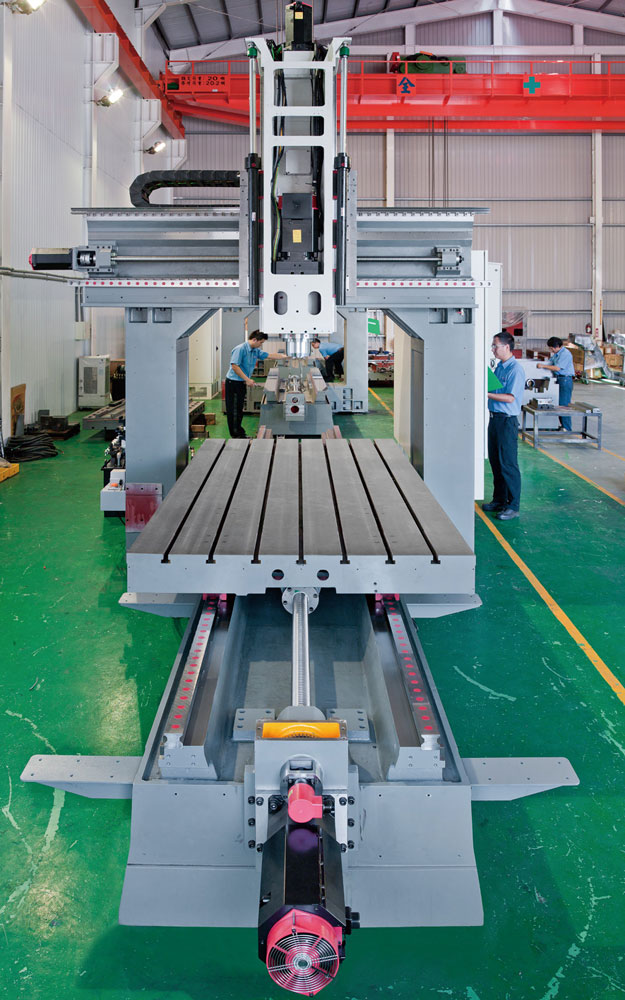

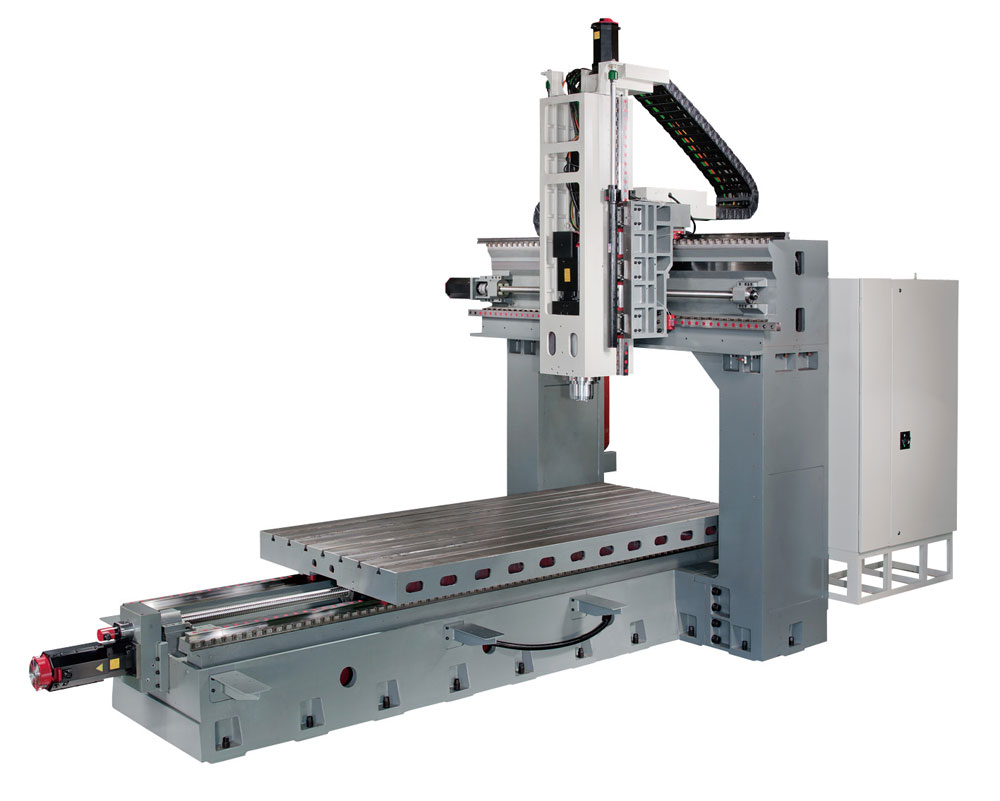

  • High Speed Liner Guide Double Column Machine Center
  • Bed supported by two Linear rail guide ways
  • X/Y/Z-axis Swiss made Schneeberger linear technologie moition system

Applicable Industries:

  • 3C Industry
  • Precission mold processing
  • Medium and small steel mold, mold base.
  • Automotive interior processing
  • All kinds of small and medium-sized machine industrial processing.

Travels: 2.2m to 4.2m X-axis
1.6m to 2m Y axis
Between the columns 1.7m to 2m

Model

Unit

DX-2216 /20 DX-2716 / 20 DX-3216 / 20 DX-4216 / 20
Travel
X axis mm 2,200 2,700 3,200 4,200
Y axis mm 1,600 / 2,000
Zaxis mm 800 / (1,000 -opt)
Distance from Spindle nose to table mm 150-950 / (150 – 1,150-opt)
Distance between two Columns mm 1,700 / 2,100
Working Table
Table Length mm

2,000

2,500 3,000 4,000
Table Width mm 1,400 / 1,700
T-Slot (width x number x pitch) mm 22x7x180 / 22x9x180
Table Load kg 8,000 9,000 10,000 12,000
Spindle
Spindle Motor kW 18.5/22 (22/26 opt.)
Spindle Speed (gear type) rpm 4,500(6,000 opt.)
Spindle Taper BT50 / ISO 50 / CAT 50
Feed
Rapid Feed-rate (X/Y/Z) m/min 12/12/15 (24/24/15 opt.) 10/12/15 (18/24/15 opt.)
Cutting Feed-rate mm/min 7,000 / (10,000-opt.)
Accuracy
Positioning Accuracy (JIS) mm ±0.005/300:±0.015 / full travel
Positioning Accuracy (VDI 3441) mm 0.030 0.035
Positioning Repeatability (JIS) mm ±0.003
Positioning Repeatability (VDI 3441) mm 0.025 0.028
ATC
Tool magazine capacity pcs 32 (24/40/60-opt.)
Max. tool size (full tool/next pocket empty) mm 125 / 245
Max. tool length mm 400
Max. tool weight kg 20
Other
Power Required kVA 65
Machine Weight (approx.) tons 19 /21 12 / 23 23 / 25 27 /29
Machine Length (approx.) mm 7,600 8,600 9,600 11,600
Machine Width (approx.) mm 5,600 / 6,100
Machine Height (approx.) mm 4,700

fc1

DX Formula

11
Manual clamping / automatic indexing head
(minimum index unit: 5°)
MC 5-face milling head
(Limited on FS/DX/PC/LG/LS series)
Vertical / Horizontal ATC unit is not included.
MHC unit includes:
1.Pendant arm (Swing arm head station )
2.MC 5-face milling head
3.Vertical tool change unit

FCS Table

Additional Accessories

Application

Boosting Efficient Mold Machining High Feed Rates! Fast Cutting!

  • Dual R55 roller type linear guide ways in X and Y axis.
  • Standard box way or optional linear guide way

Applicable Industries

  • 3C industry
  • Precision mold machining
  • Automotive industry
  • Small to medium-sized workpiece machining

Optional

temp

Category Description DX Series
Controller FANUC 0i-MF controller
FANUC 31i-MB controller
MITSUBISHI M70 controller
SIEMENS 840D controller
HEIDENHAIN iTNC530 controller
Spindle 18.5/22 kW spindle motor
22/26 kW spindle motor
4,200rpm 2-step gear drive spindle
4,500rpm 2-step gear drive spindle
6,000rpm 2-step gear drive spindle
8,000/10,000rpm direct drive spindle
Z travel extension / higher column Z travel 800mm
Z travel 1000mm
Z travel 1200mm
Z travel 1500mm
100mm heightened column (standard Z travel)
200mm heightened column (standard Z travel)
300mm heightened column (standard Z travel)
400mm heightened column (standard Z travel)
500mm heightened column (standard Z travel)
1000mm heightened column (standard Z travel)
ATC Automatic Tool Changer 32 tools
Automatic Tool Changer 24 tools
Automatic Tool Changer 40/60 tools
Automatic Tool Changer 90 tools
Splash guard Semi splash guard
Fully enclosed splash guard (roof excluded)
Fully enclosed splash guard (roof included)
Mechanical X/Y/Z axes absolute pulse coder
Rigid tapping
Twin hydraulic cylinders
Nitrogen balancing system
Automatic lubrication system
Spindle oil cooler
Air blast through spindle
Manual Pulse Generator
Working lamp
3-color alarm lamp
RS-232 interface
Heat exchanger for electrical cabinet
Water gun and air gun interface
Cutting coolant system
Twin auger chip removal system
Belt type chip conveyor with cart
X axis Heidenhain Linear Scale
Sub-table
3 axes manual pulse generator for mold processing
Coolant through spindle at 20/40/70 bar
Coolant through tool holder interface
Air conditioner for electrical cabinet
Transformer
Oil skimmer
Oil mist collector
Others Leveling bolts & blocks
Tool box
CE norm
Measurement Heidenhain Linear Scale
Automatic tool measuring system
Automatic work piece measuring system
4th axis function CNC Rotary table
4th axis preparation
Milling head function Manual: 90° angular milling head/ high speed 2-axis milling head/
universal head/ extend head/ boring head

Semi-automatic: 90° angular milling head/ 2-axis head/
extend head/ boring head -V/H ATC and AHS inapplicable

Automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head
Vertical/Horizontal Automatic Tool Changer (40/60/90 tools)
Manual Head Station (Table type)
Manual Head Station (Arm type)
Automatic Head Station

  -Standard /   -Optional /   -Inapplicable /   -Depending on the model
