GC Series

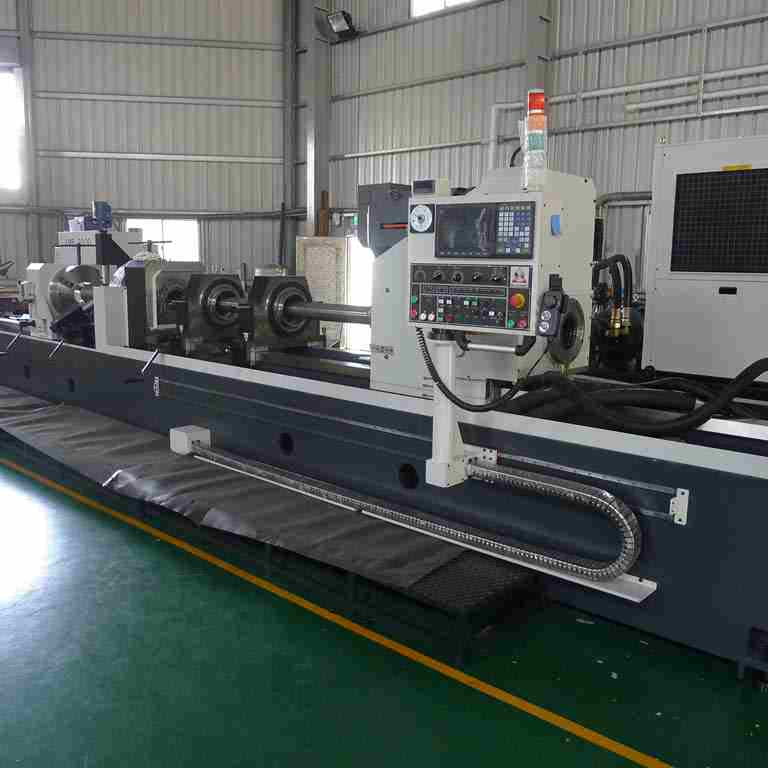

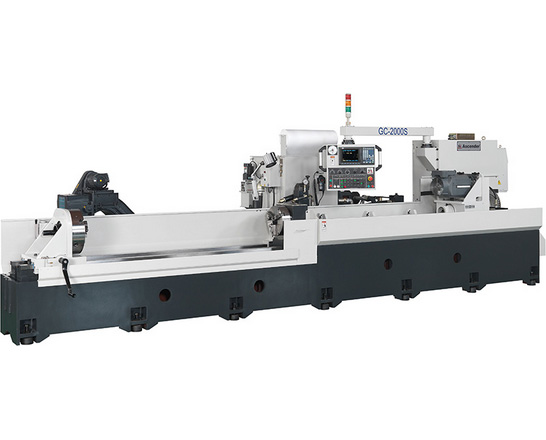

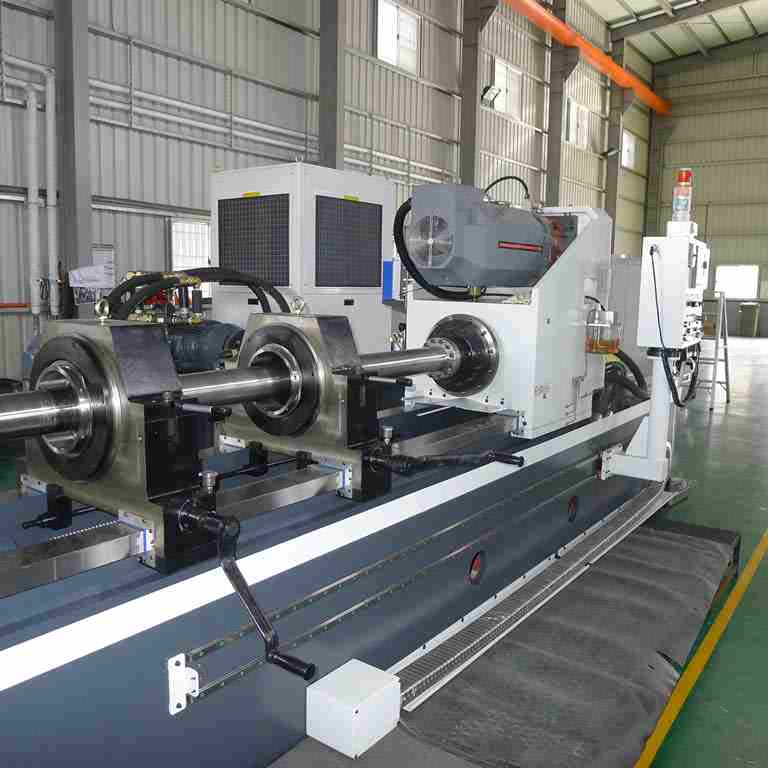

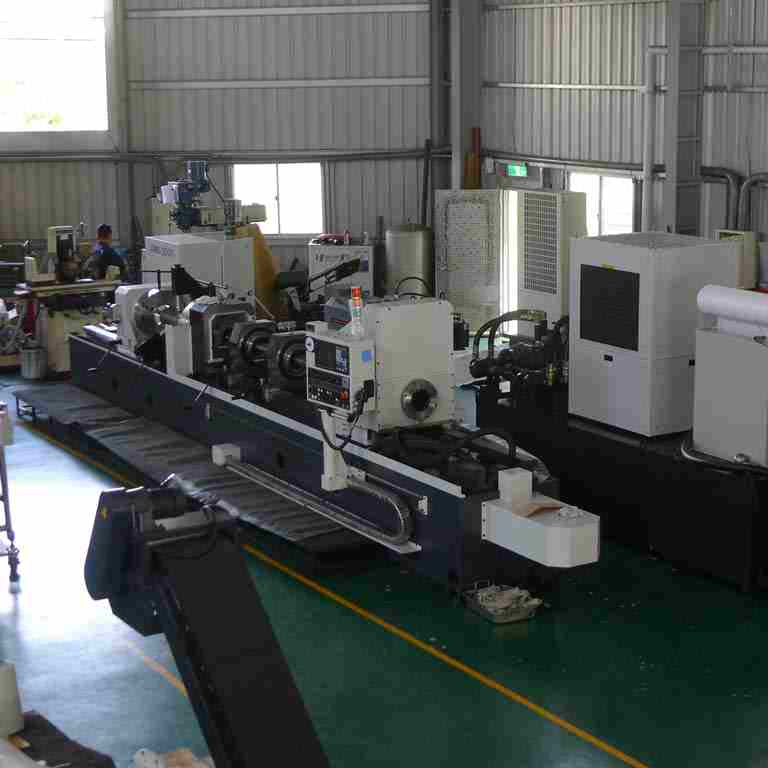

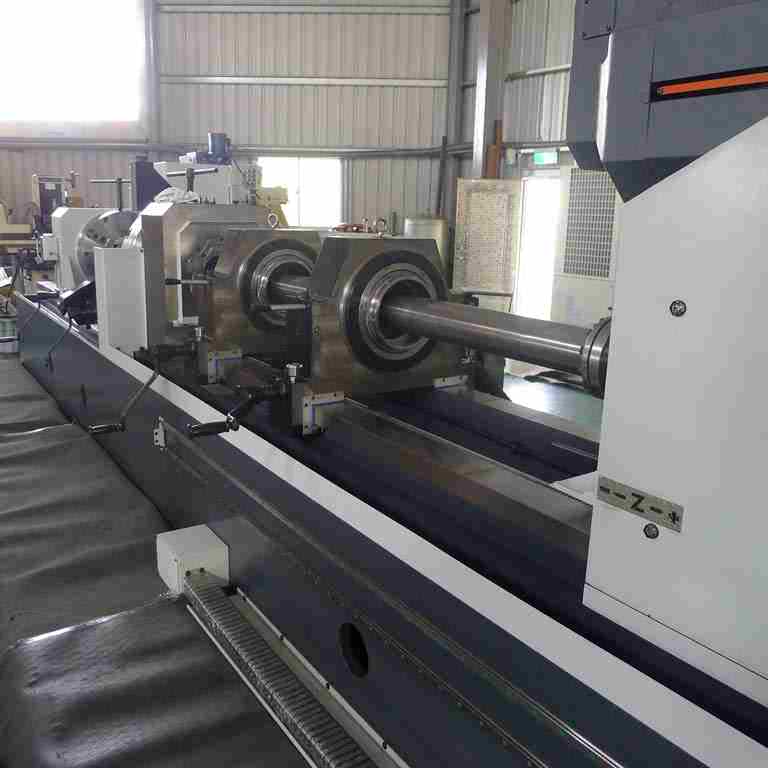

- High efficiency single spindle, double spindles and multiple spindles gun drilling machine.
- Suitable for center hole machining.
- Suitable for various cylindrical parts machining, suchas mold accessories, automotive parts and hydraulic parts, etc.
- Custom machine specifications are available to meet specific machining requirements.
- Rigid, Stable, Accurate
- 5 Axes Rotary Table
- Quality & Efficiency
- Product Specifications
- Accessories
- Additional Accessories
- Spindle Units
- Application
- Optional
| Model |
GC-500S4 |
GC-1000S2 | GC-1000S2D | GC-1500S2 | GC-1500S2D | GC-2000S | GC-2000SD |
|---|---|---|---|---|---|---|---|
| Drilling dia. | ø3~25 mm | ø3~30 mm (opt. ø4~40 mm) | |||||
| Drilling depth | 500 mm | 1,000 mm | 1,500 mm | 2,000 mm | |||
| Z-axis travel | 1,200 mm | 1,600 mm | 2,200 mm | 2,800 mm | |||
| Controller | Fanuc / Mitsubishi | ||||||
| Spindle speed | 10~8,000 rpm | ||||||
| Spindle motor | 7.5 kw | ||||||
| Z-axis motor | 3.5 kw | 2.0 kw | |||||
| Cooler capacity | 12,500~15,000 kcl/hr |
7,500~9,000 kcl/hr |
|||||
| Drum type paper filter | 360 l/min | 200 l/min | |||||
Design and specification are subject to change without prior notice.
