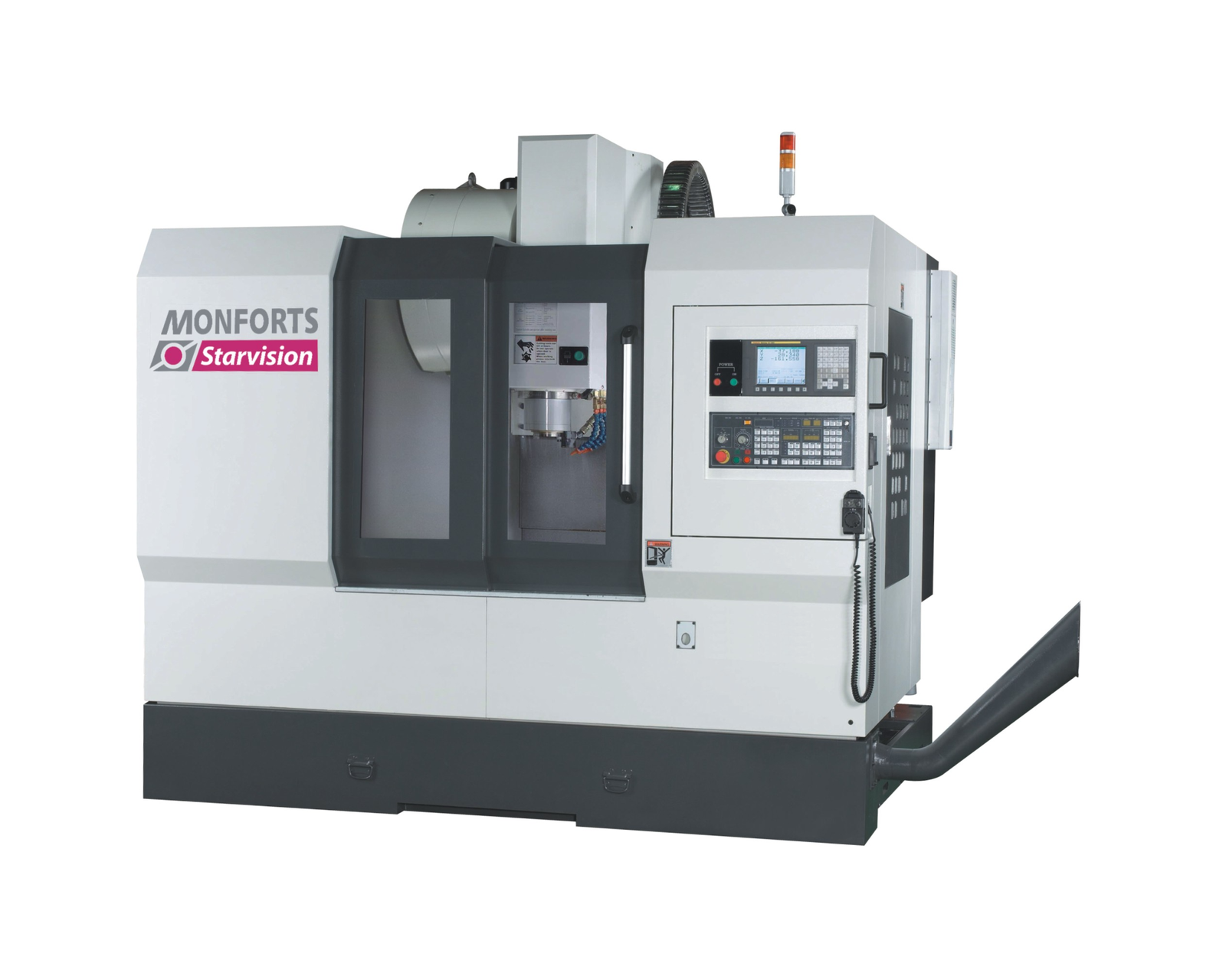

Monforts Starvision

GQ1000L-1200L

Finite element analysis

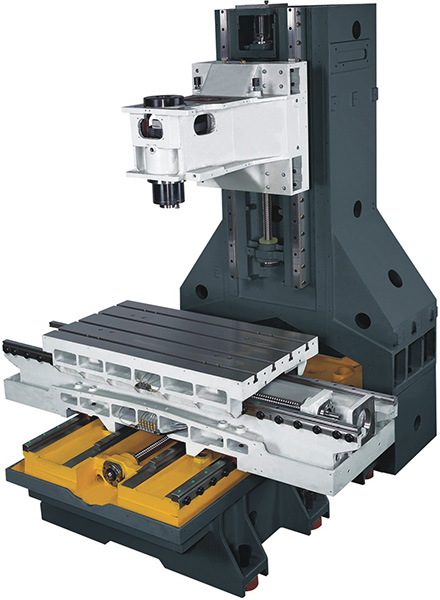

The extra-wide and extremely stable base has 4 Linear ways providing solid support for the entire machine

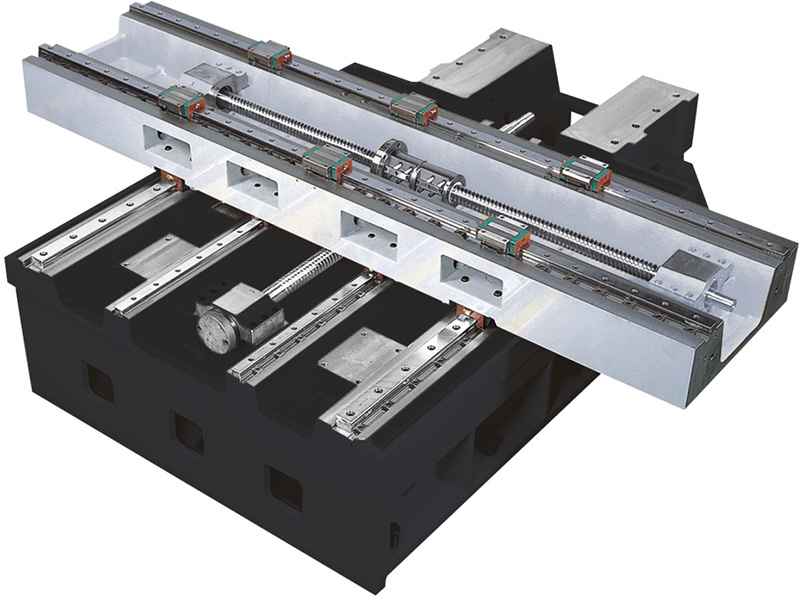

X, Y axis with 4 Linear Guideway
High speed and precision ball screw
High rigidity spindle
Stability ATC system. (Auto tool change)
Chip flushing devices on both sides with screw chip conveyor

Video 1

Contact Natex

Model			GQ1000L	GQ1200L
Table	Work area	mm	1200X500	1300X680
	T-slot	mmxT	125X18X4T	100X18X5T
	Max. loading	kgs	1000	1200
Travel	Three Axes Travel	mm	1000X600X620	1200X620X650
	Spindle nose to work table surface	mm	130~750	150~800 \| 250~900
	Spindle center to Cloumn slide ways	mm	620	650
Spindle	Spindle taper		BT40	BT40 \| BT50
	Spindle diameter	mm	Ø70	Ø70 \| Ø100
	Spindle speed	rpm	8000	8000 \| 4500
Feedrate	3 axes Slide Feedrate		Linear Guide ways	X,Y linear/ Z Box Ways
	3 axes Cutting Feedrate	m/min	10	10
	3-axes rapid Feedrate	m/min	30	24/24/18
ATC	Tool Selection		Bi-directional shortest path	Bi-directional shortest path
	Max. Tool diameter x length	mm	Ø100×300	Ø100×300 \| Ø146×300
	Max. Tool weight	kgs	7	7 \| 15
	Tool shank		BT/CAT40	BT/CAT40 \| BT/CAT50
	ATC capacity(Armless type)		20	20 \| 16
Motor	Spindle motor (cont/30min)	kw	7.5/11	7.5/11 \| 7.5/11
	X, Y, Z-axes Sonomotor		HF203	HF203/HF353
	X, Y, Z-axes ball screw		Ø40XP10	XY50 P12 250 P10
	Coolant pump	w	660	660
Miscellaneous	External dimensions(LxWxH)(Approx.)	mm	2810X2180X2700	3400X2350X2840 \| 3400X2350X2980
	Splash guard		Full splash guard	Full splash guard
	Coolant tank capacity	L	250	300
	Net Weight (Approx.)	kgs	6200	7800 \| 8300
