Monforts Starvision

SBM Series

Heavy Duty High Efficiency

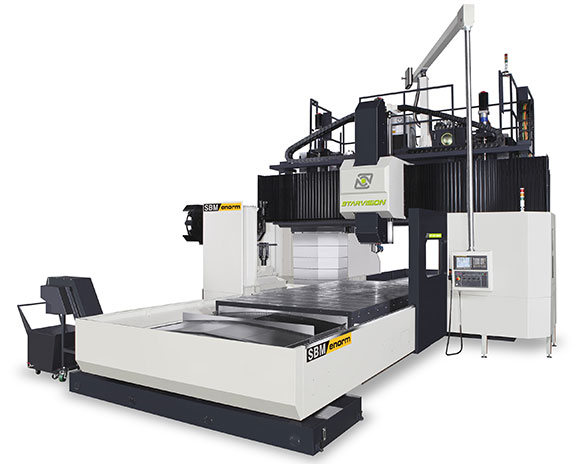

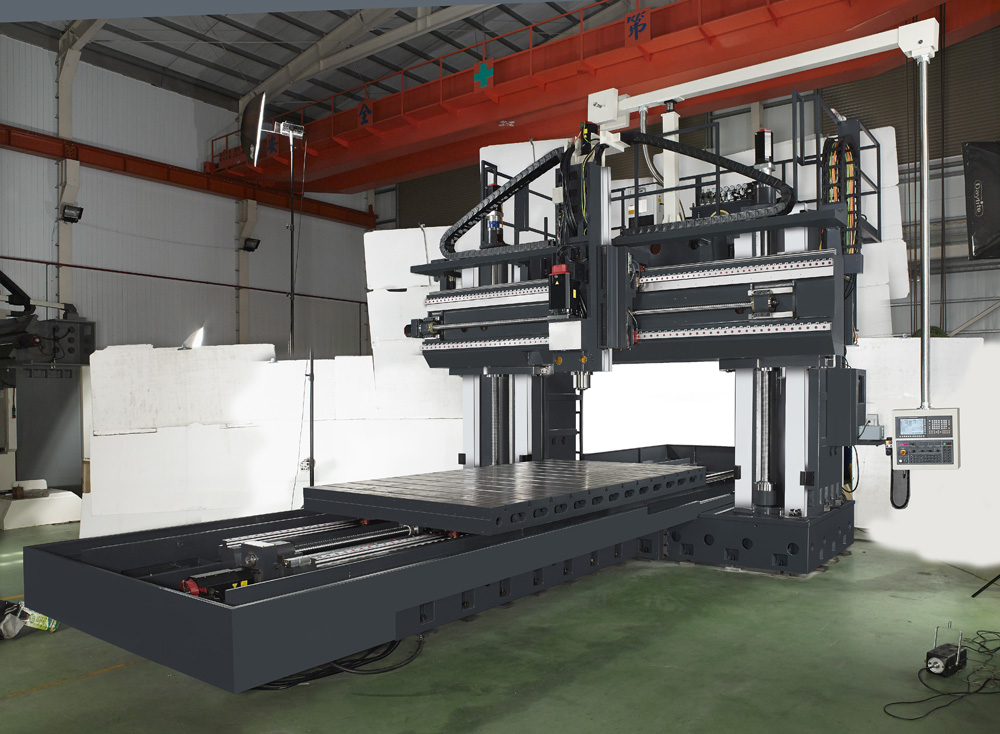

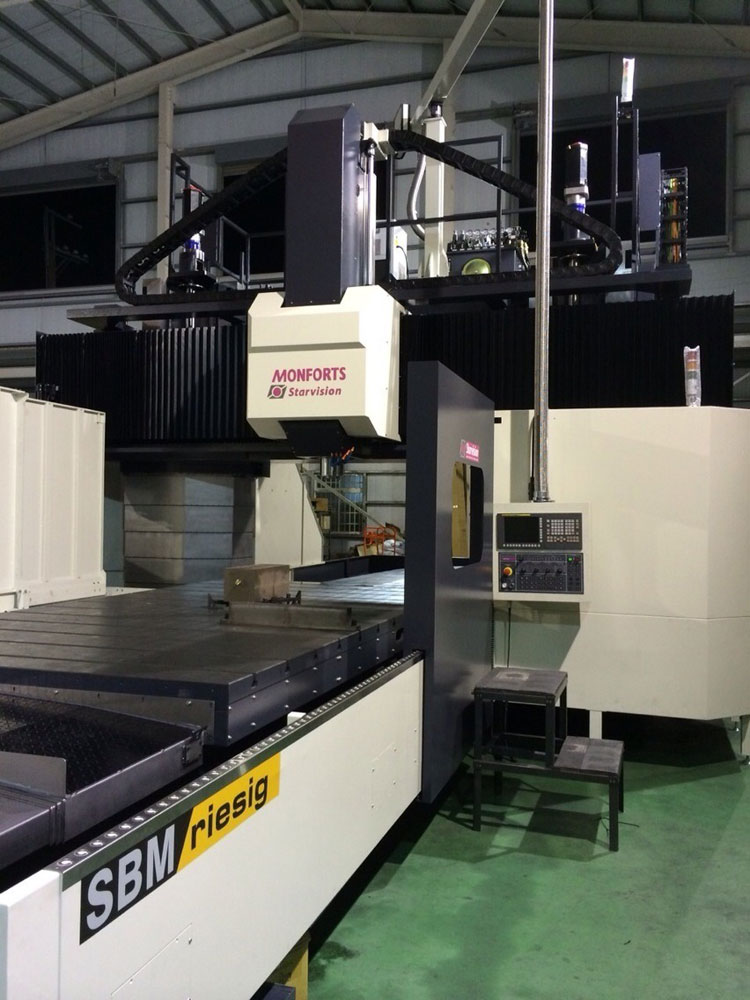

Moving beam double column machining center, the W axis moves to proper proposition according to work-piece height, which increases working efficiency, reduces production cost, featuring versatile application range and better profitability.

Super Cutting Performance:

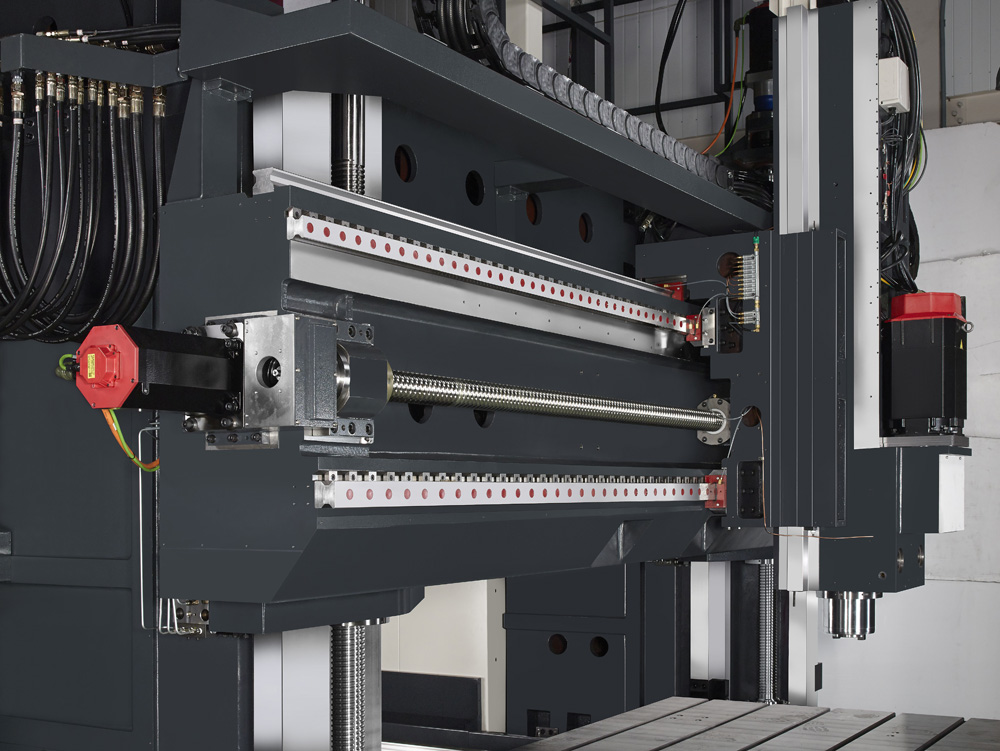

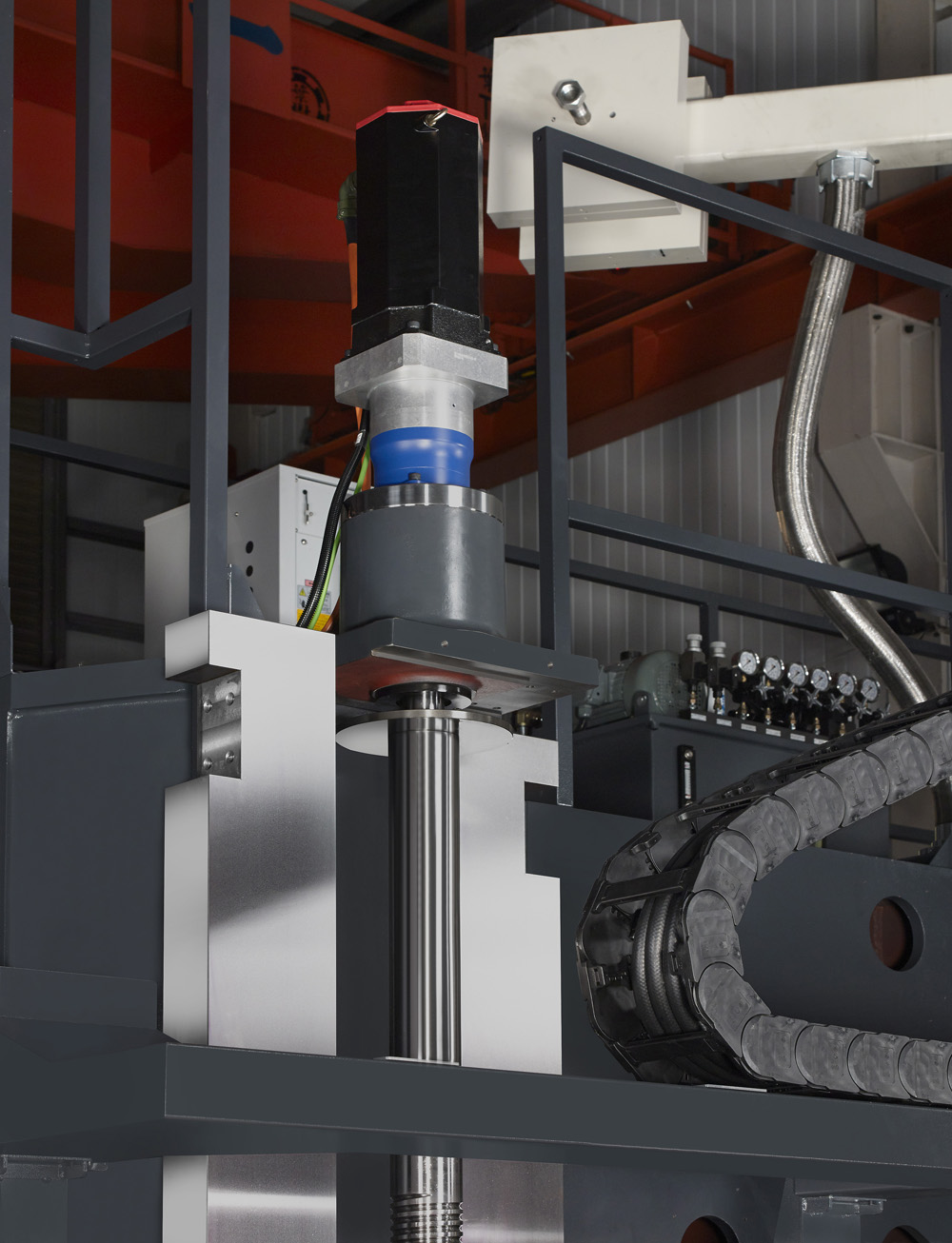

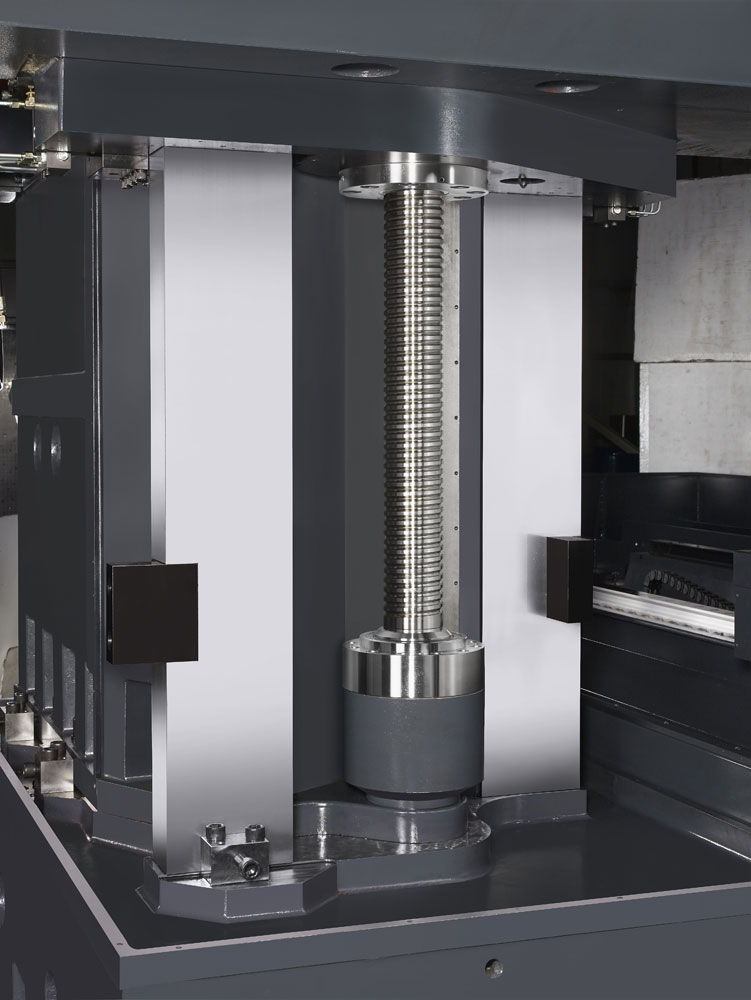

The moving cross beam shortens the distance between spindle and work-piece, which contributes higher rigidity for heavy duty cutting.

Travels 5.2m to 10.2m X-axis
3.7m to 5.7m Y-axis

Between the columns 3.1m to 5.
brochure coming soon

Model Unit SBM-5237 SBM-6237 SBM-8237 SBM-10237
Travel
X axis mm 5,200 6,200 8,200 10,200
Y axis mm 3,700 / 4,700 /5,700 3,700 / 4,700 /5,700 3,700 / 4,700 /5,700 3,700 / 4,700 /5,700
Z axis mm 1,200 1,200 1,200 1,200
W axis mm 1,000 1,000 1,000 1,000
Spindle nose to table mm 150~2350 150~2350 150~2350 150~2350
Distance between Column mm 3,100 / 4,100 / 5,100 3,100 / 4,100 / 5,100 3,100 / 4,100 / 5,100 3,100 / 4,100 / 5,100
Table
Table dimensions (L) mm 5,000 6,000 8,000 10,000
Table dimensions (W) mm 2,800 / 3,500 / 3,500 2,800 / 3,500 / 3,500 2,800 / 3,500 / 3,500 2,800 / 3,500 / 3,500
T-slot (width x number x pitch) 28x13x200 28x13x200 28x13x200 28x13x200
Max. table load kg 15,000 18,000 20,000 22,000
Spindle
Spindle motor(cont./30 minute rated) kW 22/26 22/26 22/26 22/26
Spindle motor(gear box / belt / direct) rpm 4,200 4,200 4,200 4,200
Spindle taper (BT-50) ISO 50 (BT-50) ISO 50 (BT-50) ISO 50 (BT-50) ISO 50
Feed
Rapid traverse mm/min X/Y:10 Z:12 W:2 X/Y:10 Z:12 W:2 X:8 Y:10 Z:12 W:2 X:8 Y:10 Z:12 W:2
Cutting feed-rate mm/min 7,000 7,000 7,000 7,000
Accuracy
Positioning Accuracy (JIS) mm ±0.005/300:±0.015/ Full travel ±0.005/300:±0.015/ Full travel ±0.005/300:±0.015/ Full travel ±0.005/300:±0.015/ Full travel
Positioning Accuracy (VDI 3441)
Pneumatic input pressure mm P0.03 P0.03 P0.035 P0.035
Positioning Repeatability (JIS) mm ±0.003 ±0.003 ±0.003
Positioning Repeatability (VDI 3441) mm Ps0.025 Ps0.025 Ps0.028 Ps0.028
Other
Electric power consumption KVA 65 65 65 6.5
Pneumatic input pressure kg/cm² 65 65 65 6.5
Machine weight (approx.) Tons 69 78 97 115
Machine floor space(approx.) (LxWxH) mm 13.7×7.6.7 17.5×7.6.7 19.7×7.6.7 23.7×7.6.7
11
Automatic clamping / automatic indexing head.
AC 5-face milling head
(Limited on PC/LG/LS Series)
SPINDLE SPEED RPM: 3000
AHC Unit includes:
(The unit is not included in PC Series)
Vertical / Horizontal 60 ATC unit.
22/26 KW Motor
Y Axis extension to 800 mm. (400 mm each side)
Higher Column 200 mm.
AC 5-face milling head
11
Manual clamping / automatic indexing head
(minimum index unit: 5°)
MC 5-face milling head
(Limited on FS/DX/PC/LG/LS series)
Vertical / Horizontal ATC unit is not included.
MHC unit includes:
1.Pendant arm (Swing arm head station )
2.MC 5-face milling head
3.Vertical tool change unit

FCS Table

Additional Accessories

Application

From Overheight to Super-thin Workpiece Machining – ALL DONE IN SBM

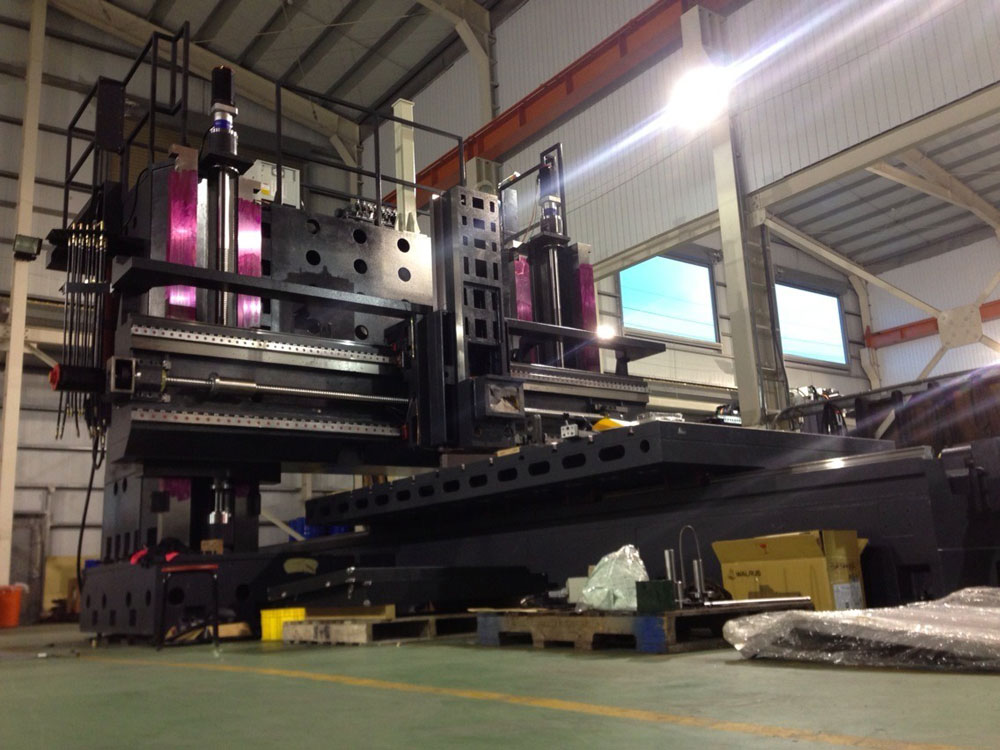

  • An optimum main structure must be able to withstand the stressed from both the weight of casting itself and the reaction force generated during machining. Starvision SBM series is rigid enough to resist the deformation.

Optional

c

Category Description SBM(I) Series
Controller FANUC 0i-MF controller
FANUC 31i-MB controller
MITSUBISHI M70 controller
SIEMENS 840D controller
HEIDENHAIN iTNC530 controller
Spindle 18.5/22 kW spindle motor
22/26 kW spindle motor
4,200rpm 2-step gear drive spindle
4,500rpm 2-step gear drive spindle
6,000rpm 2-step gear drive spindle
8,000/10,000rpm direct drive spindle
Z travel extension / higher column Z travel 800mm
Z travel 1000mm
Z travel 1200mm
Z travel 1500mm
100mm heightened column (standard Z travel)
200mm heightened column (standard Z travel)
300mm heightened column (standard Z travel)
400mm heightened column (standard Z travel)
500mm heightened column (standard Z travel)
1000mm heightened column (standard Z travel)
ATC Automatic Tool Changer 32 tools
Automatic Tool Changer 24 tools
Automatic Tool Changer 40/60 tools
Automatic Tool Changer 90 tools
Splash guard Semi splash guard
Fully enclosed splash guard (roof excluded)
Fully enclosed splash guard (roof included)
Mechanical X/Y/Z axes absolute pulse coder
Rigid tapping
Twin hydraulic cylinders
Nitrogen balancing system
Automatic lubrication system
Spindle oil cooler
Air blast through spindle
Manual Pulse Generator
Working lamp
3-color alarm lamp
RS-232 interface
Heat exchanger for electrical cabinet
Water gun and air gun interface
Cutting coolant system
Twin auger chip removal system
Belt type chip conveyor with cart
X axis Heidenhain Linear Scale
Sub-table
3 axes manual pulse generator for mold processing
Coolant through spindle at 20/40/70 bar
Coolant through tool holder interface
Air conditioner for electrical cabinet
Transformer
Oil skimmer
Oil mist collector
Others Leveling bolts & blocks
Tool box
CE norm
Measurement Heidenhain Linear Scale
Automatic tool measuring system
Automatic work piece measuring system
4th axis function CNC Rotary table
4th axis preparation
Milling head function Manual: 90° angular milling head/ high speed 2-axis milling head/
universal head/ extend head/ boring head

Semi-automatic: 90° angular milling head/ 2-axis head/
extend head/ boring head -V/H ATC and AHS inapplicable

Automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head
Vertical/Horizontal Automatic Tool Changer (40/60/90 tools)
Manual Head Station (Table type)
Manual Head Station (Arm type)
Automatic Head Station
