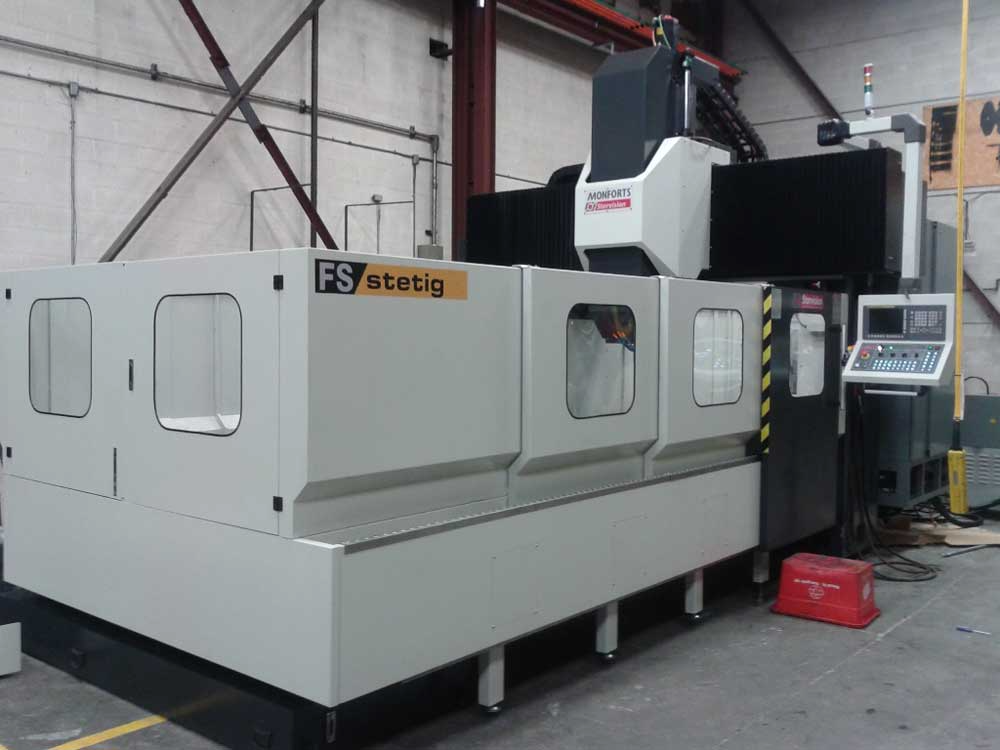

FS STETIG

STARVISION

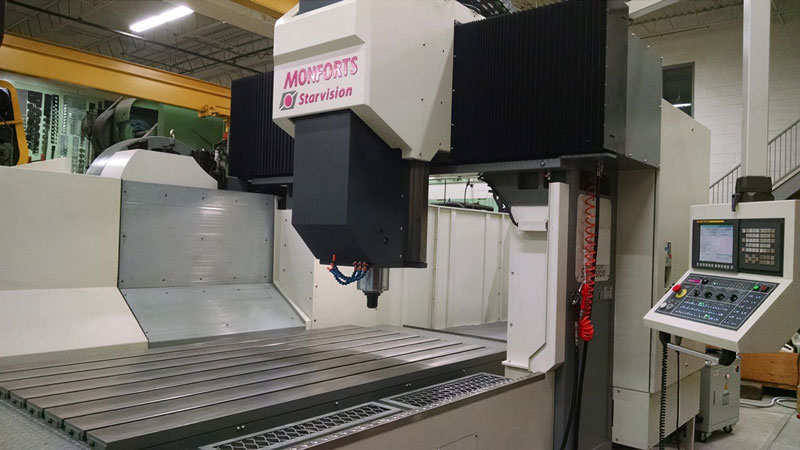

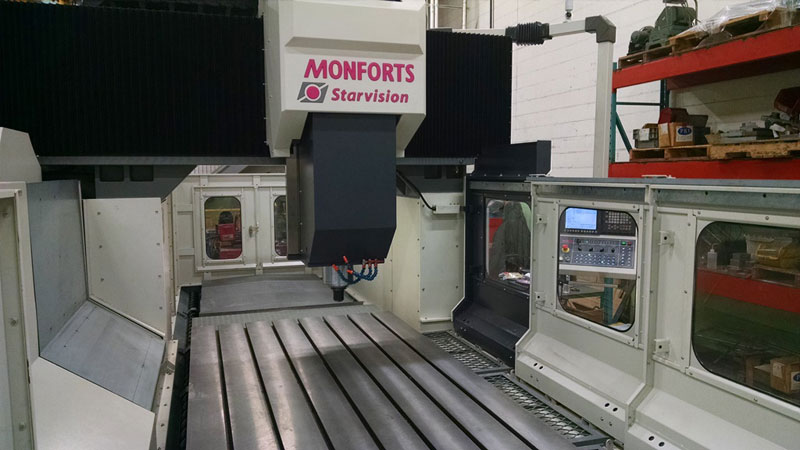

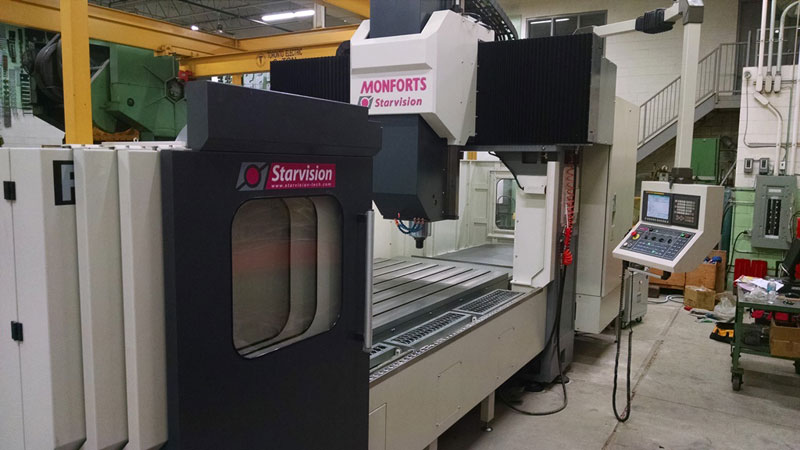

Double Column Machine Center All casting structures: Base, columns, beam, saddle and headstock. In order to meet customer’s demand, Starvision offers the complete machine. Through attentive design and precise processing, they have improved the assemble technology and design.

Applicable Industries:

Travels:2.2m to 4m X axis
1.6m to 2m Y axis

Between the columns 1700mm/2100mm.

Product Specifications

Accessories

Additional Accessories

Spindle Units

Application

Optional

Product Specifications

Model	Unit	FS-2216 /20	FS-2716 / 20	FS-3216 / 20	FS-4216 / 20
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000
Zaxis	mm	800 / (1,000 -opt)
Distance from Spindle nose to table	mm	150-950 / (150 – 1,150-opt)
Distance between two Columns	mm	1,700 / 2,100

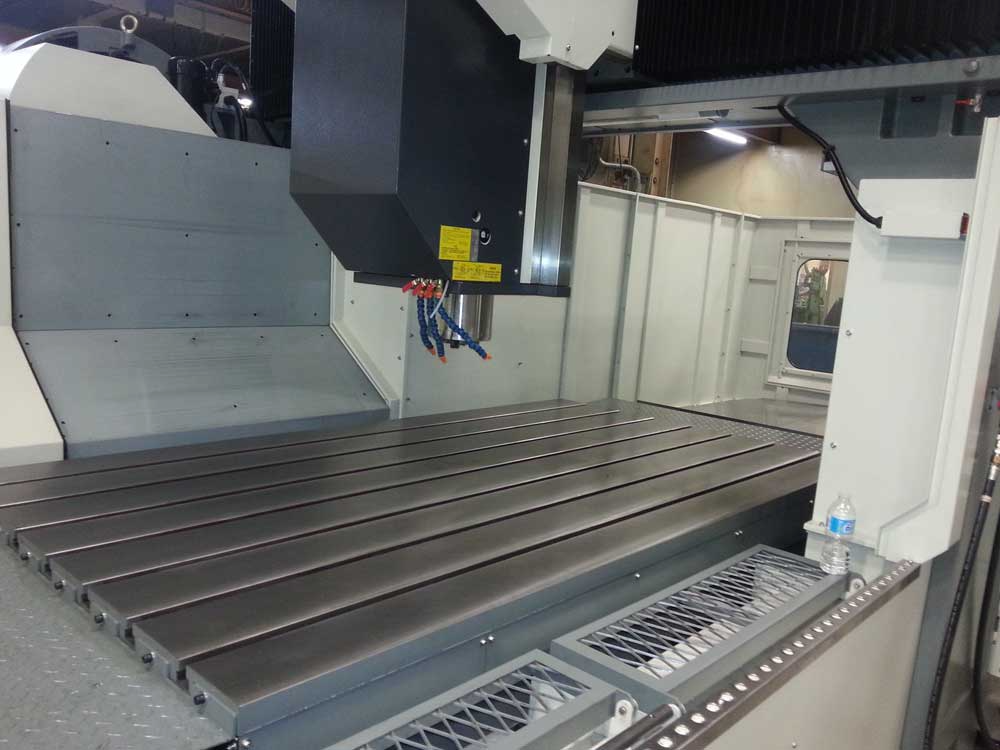

Working Table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,400 / 1,700
T-Slot (width x number x pitch)	mm	22x7x180 / 22x9x180
Table Load	kg	8,000	9,000	10,000	12,000
Spindle
Spindle Motor	kW	18.5/22 (22/26 opt.)
Spindle Speed (gear type)	rpm	4,500(6,000 opt.)
Spindle Taper	—	BT50 / ISO 50 / CAT 50
Feed
Rapid Feed-rate (X/Y/Z)	m/min	12/12/15		10/12/15
Cutting Feed-rate	mm/min	7,000
Accuracy
Positioning Accuracy (JIS)	mm	±0.005/300：±0.015 / full travel
Positioning Accuracy (VDI 3441)	mm	0.030		0.035
Positioning Repeatability (JIS)	mm	±0.003
Positioning Repeatability (VDI 3441)	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full tool/next pocket empty)	mm	125 / 245
Max. tool length	mm	400
Max. tool weight	kg	20
Other
Power Required	kVA	65
Machine Weight (approx.)	tons	20 / 22	22 / 24	24 / 26	28 / 30
Machine Length (approx.)	mm	7,600	8,600	9,600	11,600
Machine Width (approx.)	mm	5,600 / 6,100
Machine Height (approx.)	mm	4,700

Accessories

Additional Accessories

Spindle Units

Application

Optional

Category	Description	FS Series

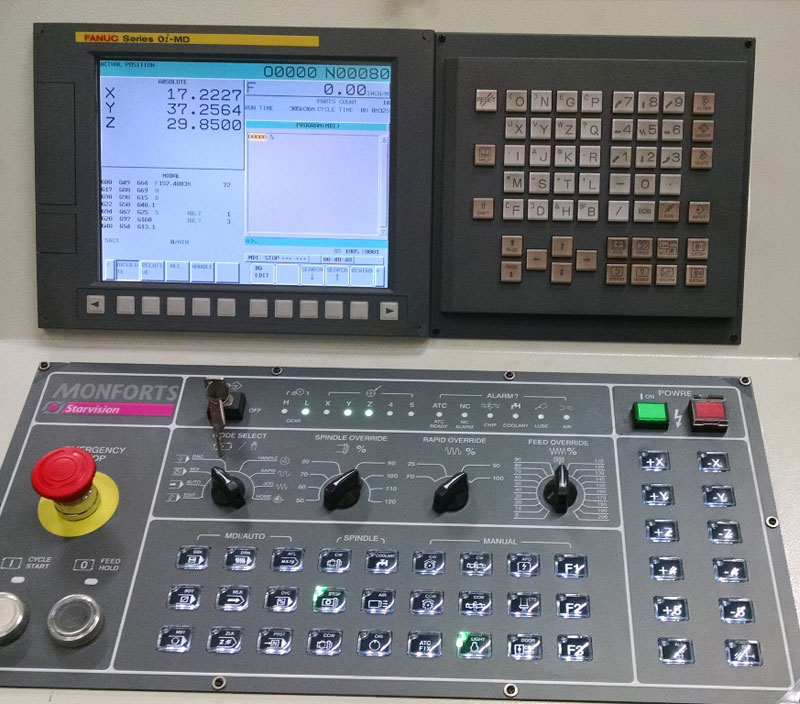

Controller	FANUC 0i-MF controller
	FANUC 31i-MB controller
	MITSUBISHI M70 controller
	SIEMENS 840D controller
	HEIDENHAIN iTNC530 controller
Spindle	18.5/22 kW spindle motor
	22/26 kW spindle motor
	4,200rpm 2-step gear drive spindle
	4,500rpm 2-step gear drive spindle
	6,000rpm 2-step gear drive spindle
	8,000/10,000rpm direct drive spindle
Z travel extension / higher column	Z travel 800mm
	Z travel 1000mm
	Z travel 1200mm
	Z travel 1500mm
	100mm heightened column (standard Z travel)
	200mm heightened column (standard Z travel)
	300mm heightened column (standard Z travel)
	400mm heightened column (standard Z travel)
	500mm heightened column (standard Z travel)
	1000mm heightened column (standard Z travel)
ATC	Automatic Tool Changer 32 tools
	Automatic Tool Changer 24 tools
	Automatic Tool Changer 40/60 tools
	Automatic Tool Changer 90 tools
Splash guard	Semi splash guard
	Fully enclosed splash guard (roof excluded)
	Fully enclosed splash guard (roof included)
Mechanical	X/Y/Z axes absolute pulse coder
	Rigid tapping
	Twin hydraulic cylinders
	Nitrogen balancing system
	Automatic lubrication system
	Spindle oil cooler
	Air blast through spindle
	Manual Pulse Generator
	Working lamp
	3-color alarm lamp
	RS-232 interface
	Heat exchanger for electrical cabinet
	Water gun and air gun interface
	Cutting coolant system
	Twin auger chip removal system
	Belt type chip conveyor with cart
	X axis Heidenhain Linear Scale	–
	Sub-table
	3 axes manual pulse generator for mold processing
	Coolant through spindle at 20/40/70 bar
	Coolant through tool holder interface
	Air conditioner for electrical cabinet
	Transformer
	Oil skimmer
	Oil mist collector
Others	Leveling bolts & blocks
	Tool box
	CE norm
Measurement	Heidenhain Linear Scale
	Automatic tool measuring system
	Automatic work piece measuring system
4^th axis function	CNC Rotary table
4^th axis function	4^th axis preparation
Milling head function	Manual: 90^° angular milling head/ high speed 2-axis milling head/ universal head/ extend head/ boring head
	Semi-automatic: 90^° angular milling head/ 2-axis head/ extend head/ boring head -V/H ATC and AHS inapplicable
	Automatic: 90^° angular milling head/ 2-axis head/ extend head/ boring head
	Vertical/Horizontal Automatic Tool Changer (40/60/90 tools)
	Manual Head Station (Table type)
	Manual Head Station (Arm type)
	Automatic Head Station

-Standard / -Optional / -Inapplicable / -Depending on the model
