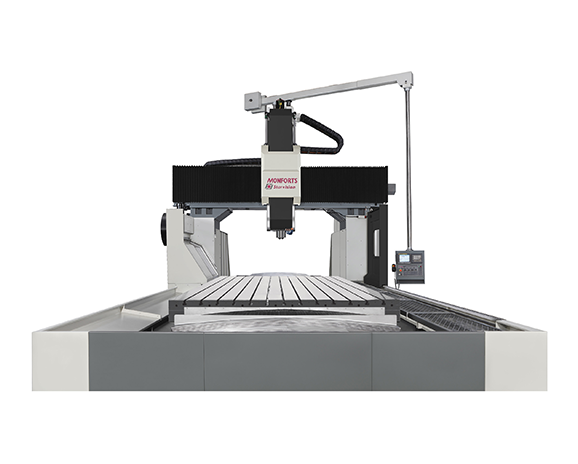

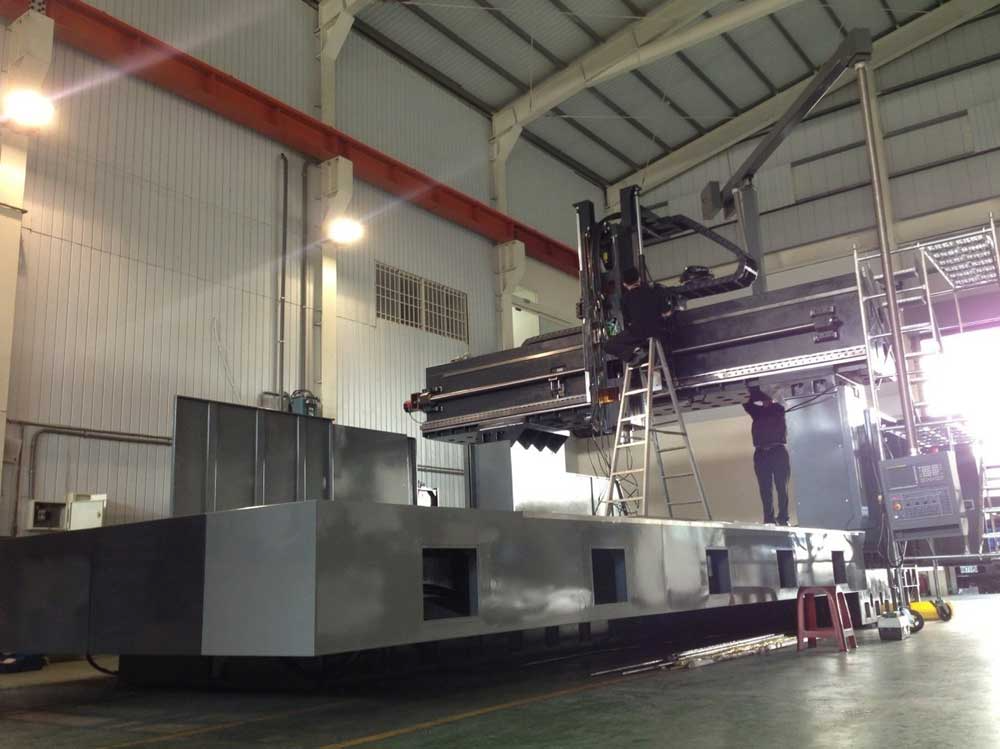

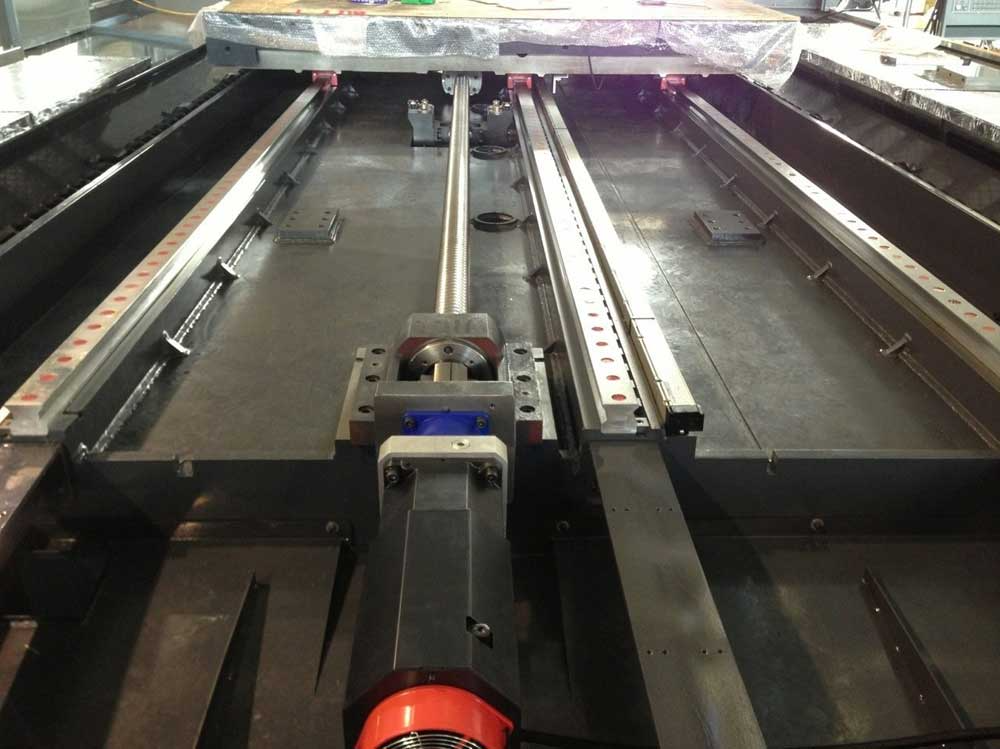

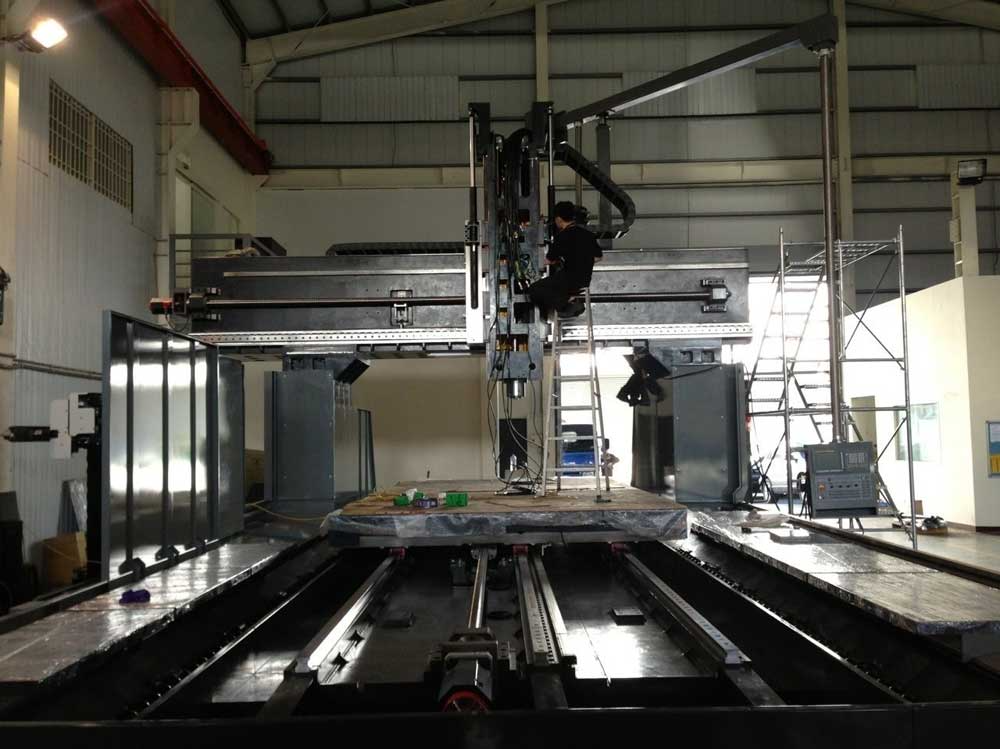

Large size Double Column Machine Center
Applicable Industries:
Travels 4.2m to 10.2m X-axis
3m to 3.5m Yaxis
Between the columns 3.2m to 3.7m
Model |
Unit |
LS(Ⅰ)-4230 / 35 | LS(Ⅰ)-5230 / 35 | LS(Ⅰ)-6230/ 35 | LS(Ⅰ)-8230/ 35 | LS(Ⅰ)-10230/ 35 |
---|---|---|---|---|---|---|
Travel | ||||||
X axis | mm | 4,200 | 5,200 | 6,200 | 8,200 | 10,200 |
Y axis | mm | 3,000 / 3,500 | ||||
Zaxis | mm | 1,000 (1,200-opt.) | ||||
Distance from Spindle nose to table | mm | 150-1,150 (150-1350-opt.) | ||||
Distance between two Columns | mm | 3,200 / 3,700 | ||||
Working Table | ||||||
Table Length | mm |
4000 |
5,000 | 6,000 | 8,000 | 10,000 |
Table Width | mm | 2,800 (3,500 opt.) | ||||
T-Slot (width x number x pitch) | mm | 28x13x200 (28x17x200 opt.) | ||||
Table Load | kg | 20,000 | 24,000 | 28,000 | 32,000 | 40,000 |
Spindle | ||||||
Spindle Motor | kW | 18.5/22 (22/26 opt.) | ||||
Spindle Speed (gear type) | rpm | 4,500(6,000 opt.) | ||||
Spindle Taper | — | BT50 / ISO 50 / CAT 50 | ||||
Feed | ||||||
Rapid Feed-rate (X/Y/Z) | m/min | 10/12/12 (10/12/12 opt.) | 8/12/12 (8/10/12 opt.) | |||
Cutting Feed-rate | mm/min | 7,000 | ||||
Accuracy | ||||||
Positioning Accuracy (JIS) | mm | ±0.005/300:±0.015 / full travel | ||||
Positioning Accuracy (VDI 3441) | mm | P0.045 | ||||
Positioning Repeatability (JIS) | mm | ±0.003 | ||||
Positioning Repeatability (VDI 3441) | mm | Ps0.03 | ||||
ATC | ||||||
Tool magazine capacity | pcs | 32(40/60/90 opt.) | ||||
Max. tool size (full tool/next pocket empty) | mm | 125 / 245 | ||||
Max. tool length | mm | 400 | ||||
Max. tool weight | kg | 20 | ||||
Other | ||||||
Power Required | kVA | 65 | ||||
Machine Weight (approx.) | tons | 55 / 57 | 63 / 65 | 71 / 73 | 87 / 89 | 101 / 103 |
Machine Length (approx.) | mm | 12,000 | 14,000 | 17,000 | 21,000 | 25,000 |
Machine Width (approx.) | mm | 6,500 / 7,000 | ||||
Machine Height (approx.) | mm | 5,400 |
Category | Description | LS(I) Series |
---|---|---|

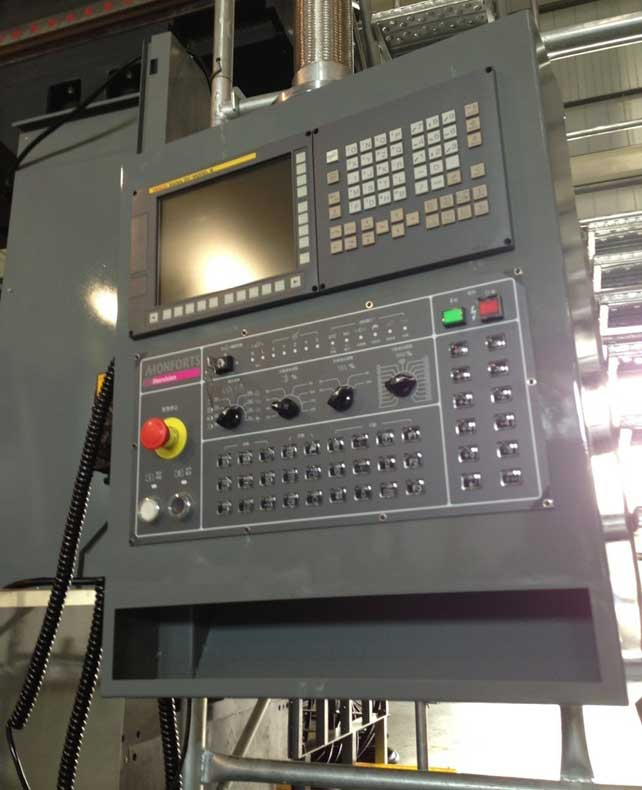

Controller | FANUC 0i-MF controller | |
FANUC 31i-MB controller | ||
MITSUBISHI M70 controller | ||
SIEMENS 840D controller | ||
HEIDENHAIN iTNC530 controller | ||
Spindle | 18.5/22 kW spindle motor | |
22/26 kW spindle motor | ||
4,200rpm 2-step gear drive spindle | ||
4,500rpm 2-step gear drive spindle | ||
6,000rpm 2-step gear drive spindle | ||
8,000/10,000rpm direct drive spindle | ||
Z travel extension / higher column | Z travel 800mm | |
Z travel 1000mm | ||
Z travel 1200mm | ||
Z travel 1500mm | ||
100mm heightened column (standard Z travel) | ||
200mm heightened column (standard Z travel) | ||
300mm heightened column (standard Z travel) | ||
400mm heightened column (standard Z travel) | ||
500mm heightened column (standard Z travel) | ||
1000mm heightened column (standard Z travel) | ||
ATC | Automatic Tool Changer 32 tools | |
Automatic Tool Changer 24 tools | ||
Automatic Tool Changer 40/60 tools | ||
Automatic Tool Changer 90 tools | ||
Splash guard | Semi splash guard | |
Fully enclosed splash guard (roof excluded) | ||
Fully enclosed splash guard (roof included) | ||
Mechanical | X/Y/Z axes absolute pulse coder | |
Rigid tapping | ||
Twin hydraulic cylinders | ||
Nitrogen balancing system | ||
Automatic lubrication system | ||
Spindle oil cooler | ||
Air blast through spindle | ||
Manual Pulse Generator | ||
Working lamp | ||
3-color alarm lamp | ||
RS-232 interface | ||
Heat exchanger for electrical cabinet | ||
Water gun and air gun interface | ||
Cutting coolant system | ||
Twin auger chip removal system | ||
Belt type chip conveyor with cart | ||
X axis Heidenhain Linear Scale | – | |
Sub-table | ||
3 axes manual pulse generator for mold processing | ||
Coolant through spindle at 20/40/70 bar | ||
Coolant through tool holder interface | ||
Air conditioner for electrical cabinet | ||
Transformer | ||
Oil skimmer | ||
Oil mist collector | ||
Others | Leveling bolts & blocks | |
Tool box | ||
CE norm | ||
Measurement | Heidenhain Linear Scale | |
Automatic tool measuring system | ||
Automatic work piece measuring system | ||
4th axis function | CNC Rotary table | |
4th axis preparation | ||
Milling head function | Manual: 90° angular milling head/ high speed 2-axis milling head/ universal head/ extend head/ boring head |
|
Semi-automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head -V/H ATC and AHS inapplicable |
||
Automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head | ||
Vertical/Horizontal Automatic Tool Changer (40/60/90 tools) | ||
Manual Head Station (Table type) | ||
Manual Head Station (Arm type) | ||
Automatic Head Station |
-Standard / -Optional / -Inapplicable / -Depending on the model
