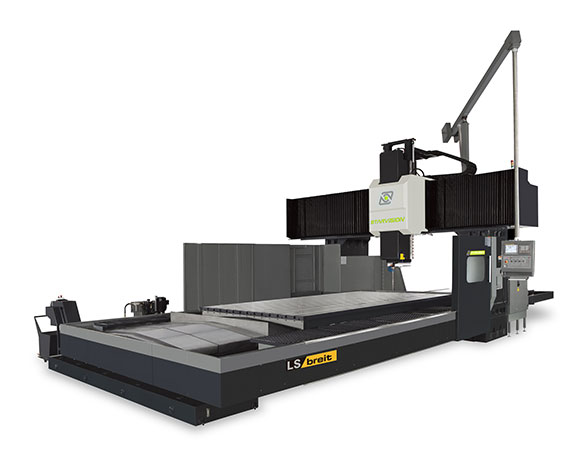

20% larger than the LS (I) Double Column Machine Center
1.2m or 1.5m Z axis travel
Applicable Industries:
Travels: 4.2m to 10.2m X-axis
Between the columns
Column Distance: 3.2m / 3.7m / 4.2m / 4.7m
| Category | Description | LS(II) Series |
|---|---|---|
| Controller | FANUC 0i-MF controller | |
| FANUC 31i-MB controller | ||
| MITSUBISHI M70 controller | ||
| SIEMENS 840D controller | ||
| HEIDENHAIN iTNC530 controller | ||
| Spindle | 18.5/22 kW spindle motor | |
| 22/26 kW spindle motor | ||
| 4,200rpm 2-step gear drive spindle | ||
| 4,500rpm 2-step gear drive spindle | ||
| 6,000rpm 2-step gear drive spindle | ||
| 8,000/10,000rpm direct drive spindle | ||
| Z travel extension / higher column | Z travel 800mm | |
| Z travel 1000mm | ||
| Z travel 1200mm | ||
| Z travel 1500mm | ||
| 100mm heightened column (standard Z travel) | ||
| 200mm heightened column (standard Z travel) | ||
| 300mm heightened column (standard Z travel) | ||
| 400mm heightened column (standard Z travel) | ||
| 500mm heightened column (standard Z travel) | ||
| 1000mm heightened column (standard Z travel) | ||
| ATC | Automatic Tool Changer 32 tools | |
| Automatic Tool Changer 24 tools | ||
| Automatic Tool Changer 40/60 tools | ||
| Automatic Tool Changer 90 tools | ||
| Splash guard | Semi splash guard | |
| Fully enclosed splash guard (roof excluded) | ||
| Fully enclosed splash guard (roof included) | ||
| Mechanical | X/Y/Z axes absolute pulse coder | |
| Rigid tapping | ||
| Twin hydraulic cylinders | ||
| Nitrogen balancing system | ||
| Automatic lubrication system | ||
| Spindle oil cooler | ||
| Air blast through spindle | ||
| Manual Pulse Generator | ||
| Working lamp | ||
| 3-color alarm lamp | ||
| RS-232 interface | ||
| Heat exchanger for electrical cabinet | ||
| Water gun and air gun interface | ||
| Cutting coolant system | ||
| Twin auger chip removal system | ||
| Belt type chip conveyor with cart | ||
| X axis Heidenhain Linear Scale | – | |
| Sub-table | ||
| 3 axes manual pulse generator for mold processing | ||
| Coolant through spindle at 20/40/70 bar | ||
| Coolant through tool holder interface | ||
| Air conditioner for electrical cabinet | ||
| Transformer | ||
| Oil skimmer | ||
| Oil mist collector | ||
| Others | Leveling bolts & blocks | |
| Tool box | ||
| CE norm | ||
| Measurement | Heidenhain Linear Scale | |
| Automatic tool measuring system | ||
| Automatic work piece measuring system | ||
| 4th axis function | CNC Rotary table | |
| 4th axis preparation | ||
| Milling head function | Manual: 90° angular milling head/ high speed 2-axis milling head/ universal head/ extend head/ boring head |
|
| Semi-automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head -V/H ATC and AHS inapplicable |
||
| Automatic: 90° angular milling head/ 2-axis head/ extend head/ boring head | ||
| Vertical/Horizontal Automatic Tool Changer (40/60/90 tools) | ||
| Manual Head Station (Table type) | ||
| Manual Head Station (Arm type) | ||
| Automatic Head Station |
-Standard / -Optional / -Inapplicable / -Depending on the model
