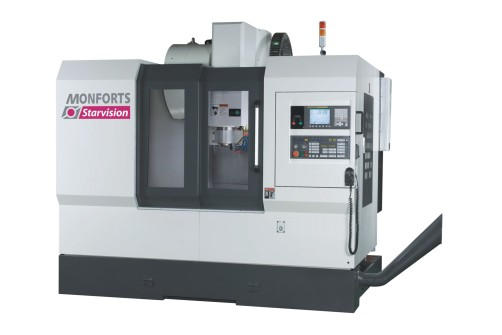

Linear Rail Design • Vertical Machining Centers
• Finite element analysis
• The extra-wide and extremely stable base has 4 Linear ways providing solid support for the entire machine
• X, Y axis with 4 Linear Guideway.
• High speed and precision ball screw
• High rigidity spindle

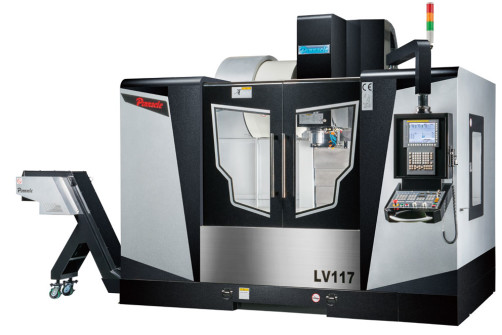

Linear Rail Design • Vertical Machining Centers
LV117, LV137, LV147, LV85, LV105
Linear Way Series - When jobs call for highly efficient machining and when outstanding accuracy is critical, a Pinnacle linear way series vertical machining center is the perfect solution.

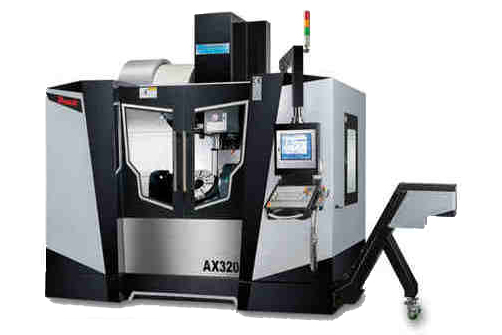

5 Axis Machining Center • Vertical Machining Centers
Features :
- 760 x 610 x560 mm Travel
- A Axis Tilt 220° (±110°)
- C Axis Rotary 360°
- Rapid Feedrate 30/30/24
- 9/12 Kw Spindle Motor
- ISO40 Spindle Taper
- X, Y & Z Axis Linear Way

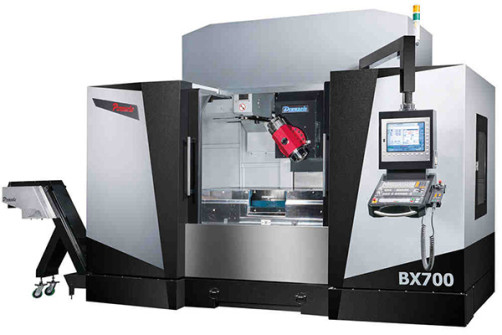

Box Way Design • Vertical Machining Centers
BX300A / BX500 / BX500A / BX500DD / BX700 / BX700A / / BX700DD / BX700T
High precision, 5-axis control vertical machining center that a swivel head with DD Motor on the rotary table to achieves the highest productivity in 5 axis machining.

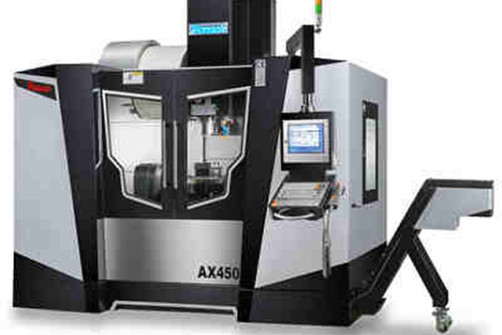

5 Axis Machining Center • Vertical Machining Centers
Features :
- 660 x 610 x 610 mm Travel
- A Axis Tilt 150° (-120°/+30°)
- C Axis Rotary 360°
- Rapid Feedrate 30/30/24
- 9/12 Kw Spindle Motor
- ISO40 Spindle Taper
- X, Y & Z Axis Linear Way
