Box Way Design • Bridge Type Machining Centers
Double Column Machine Center All casting structures: Base, columns, beam, saddle and headstock. In order to meet customer’s demand, Starvision offers the complete machine. Through attentive design and precise processing, they have improved the assemb
Bridge Type Machining Centers • Linear Rail Design
> Triple R55 roller type linear guide ways in X axis
> Dual R65 roller type linger guide ways in Y axis
> Standard boxway or optional linear guide in Z axis
Box Way Design • Bridge Type Machining Centers
Powerful Cutting Slant Type Double Column Machine Center. The unique slant crossbeam design with large span between 3 guide ways guarantees optimum performance in heavy cutting stability.
Bridge Type Machining Centers • Linear Rail Design
High Speed Liner Guide Double Column Machine Center. Bed supported by two Linear rail guide ways and X/Y/Z-axis Swiss made Schneeberger linear technologie motion system.
Bridge Type Machining Centers • Linear Rail Design

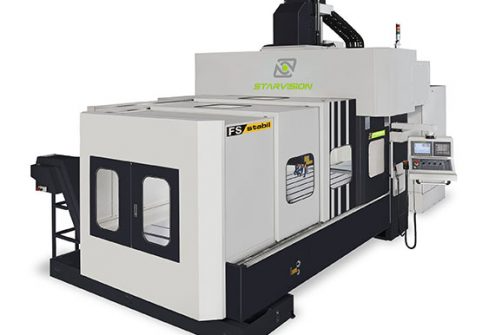

Efficiency Heavy Cutting Double Column Machine Center. Bed supported by 2 roller type linear guide ways and X/Y/Z-axis Swiss made Schneeberger linear technologie moition system. Z axis box guide ways (standard) Full chip guarding enclosure.
Bridge Type Machining Centers • Linear Rail Design

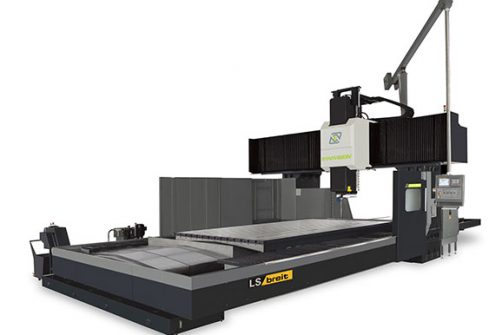

Large size Double Column Machine Center. Bed supported by 3 roller type linear guide ways. X/Y/Z-axis Schneeberger Swiss linear technologie moition system. Extra wide job operation space
Bridge Type Machining Centers • Linear Rail Design
20% larger than the LS (I) Double Column Machine Center. Bed supported by 3 roller type linear guide ways. X/Y/Z-axis Schneeberger Swiss linear technologie moition system. Extra Wide job operation space. 1.2m or 1.5m Z axis travel.
Bridge Type Machining Centers • Special Bridge Machines

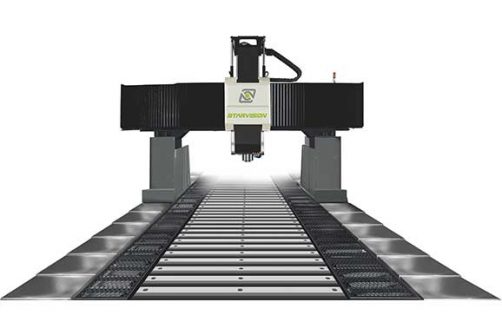

X axis is driven by 2 sets of precision racks via CNC controller’s main second system synchronously, the driving power is delivered via racks transmission gearbox, maximum stroke may reach 36 meters.
Bridge Type Machining Centers • Special Bridge Machines

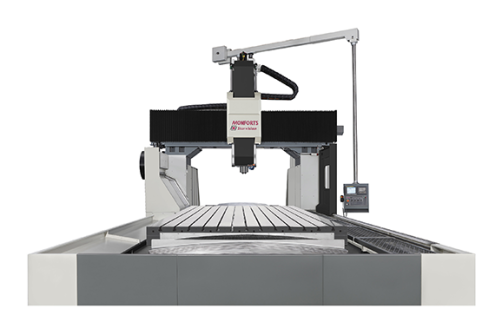

Moving beam double column machining center. The W axis moves to proper proposition according to work-piece height, which increases working efficiency, reduces production cost.
Box Way Design • Bridge Type Machining Centers
With an optimized and rigid one-piece crossbeam and column design plus larger working area.
The spindle is standard with 10,000rpm/BT-50 direct type spindle features high speed and low power consumption.
